RT6541D 是高性能的同步 Buck PWM 控制器，用于将电池高电压转换为 0.77V 低电压，具备效率高、瞬态回应特性好、输出电压精度高等特性。它采用固定导通时间的PWM控制架构，可在很宽的输入/输出电压比范围内工作，提供 100ns 量级的负载瞬变回应速度，同时保持基本恒定的工作频率。它在应用中无需使用传统电流模式控制架构使用的电流检测电阻，降低了成本，提高了效率。它具备驱动大型同步整流 MOSFET 开关的能力，可在轻载时工作于二极体模拟模式以提高效率。其封装形式为WDFN-14L 3x2。

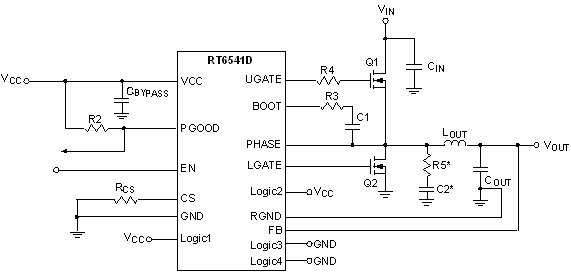

RT6541D 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>内建 1% 精度参考电压源 </li><li>利用下桥开关 R<sub>DS(ON)</sub> 检测电流并实施可调节的电流限制，4700ppm/°C 温度补偿 </li><li>输入电压范围：3V~26V </li><li>可驱动大型同步整流 MOSFET 开关 </li><li>集成自举开关 </li><li>过压/欠压保护 </li><li>过热关机保护 </li><li>Power Good 指示 </li><li>符合 RoHS 规范，不含卤素 </li><li>14 引脚 WDFN 封装 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

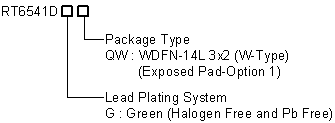

RT6541D 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT6541D
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT6541D
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>笔记型电脑 </li><li>通用 DC/DC 电源调节器 </li></ul></div>
