RT6586A/B 是双通道 Buck 控制器，用于为电池供电的系统生成稳定的电压。其中包含两组输出电压 2V~5.5V 可调的 PWM 控制器和两组恒定 5V/3.3V 输出的线性稳压器，每组线性稳压器可输出最大 100mA 的电流，3.3V 线性稳压器在输出电流低于 35mA 时的稳压精度可达 1%。它还包含了一个可用于外部电荷泵电路的振荡器输出，具有集成化的上电时序控制功能、内部软起动功能和防止关机以后出现负压的输出软放电功能。它采用定电流纹波 PWM 控制技术，工作时无需使用电流检测电阻，对负载瞬变具有 100ns 的回应速度。<br>为了获得最高的转换效率，RT6586A/B 在轻载条件下自动进入二极体模拟模式工作。其封装为 WQFN-20L 3x3。

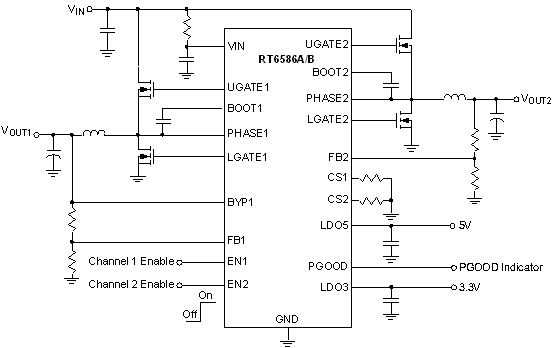

RT6586A/RT6586B 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>支援轻薄型笔记型电脑的连接待机模式 </li><li>CCRCOT 控制架构，具有 100ns 负载阶跃回应速度 </li><li>最大占空比 > 98% </li><li>5V~25V 的输入电压范围 </li><li>输出电压调节范围： <ul class="lv2"> <li></li><li>CH1：2V~5.5V </li><li>CH2：2V~4V </li></ul> </li><li>5V/3.3V LDO 具有 100mA 输出能力 </li><li>3.3V LDO 输出精度达1% </li><li>振荡器输出可供电荷泵电路使用 </li><li>内部频率设定：400kHz/475kHz(CH1/CH2) </li><li>内部软启动和软放电 </li><li>4700ppm/°C R<sub>DS(ON)</sub> 电流检测 </li><li>独立控制器使能控制 </li><li>内建 OVP/UVP/OCP/OTP </li><li>非锁定的 UVLO </li><li>Power Good 指示 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

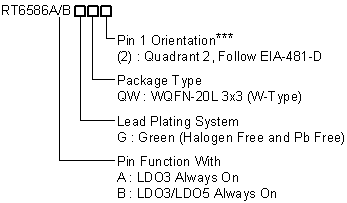

RT6586A/RT6586B 订购信息
