RT7080是针对新型电机驱动应用的高度集成功率模组，其中包含一个以ARM处理器为基础的电机控制器、3相门极驱动器、6只MOSFET功率开关、5V线性稳压器、电荷泵电路、Buck转换器和3只电流检测电阻，可满足PMSM/BLDC电机驱动应用的需求。<Br>RT7080的控制核心是由32位ARM Cortex-M0 MCU及完成无感测器电机磁场定向控制的周边电路等构成的，其中包括ADC、DAC、通讯介面、SVPWM、看门狗计时器、电流感测器、欠压锁定保护电路、短路保护电路、堵转保护电路等，可构成元件数量少、PCB面积和系统成本都很低的电机控制系统。<Br>RT7080的封装形式为WQFN-40L 6x6。

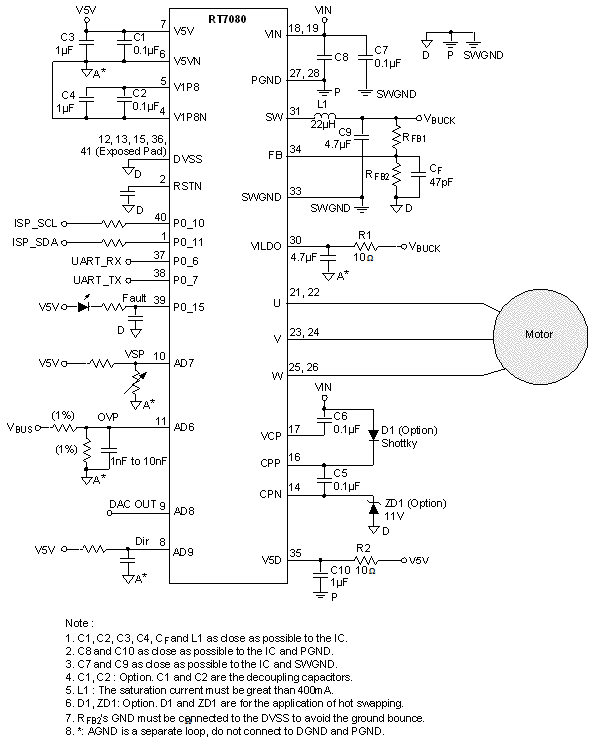

RT7080 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>集成3相PMSM/BLDC电机控制器、门极驱动器、电荷泵、Buck转换器、5V线性稳压器和MOSFET功率开关 </li><li>输入电压范围：8V~28V </li><li>相电流峰值达3A </li><li>无需外加电流检测电阻 </li><li>无需感测器的正弦磁场定向控制 </li><li>保护特性：过流保护、欠压锁定保护、堵转保护和温度检测 </li><li>PMSM/BLDC电机控制器： <ul class="lv2"> <li></li><li>32位元ARM Cortex-M0 CPU，工作频率高达60MHz </li><li>记忆体：16kB MTP ROM，内含电机控制函式程式库；4kB SRAM </li><li>电源管理方式：常规或深度睡眠 </li><li>通讯介面：I<sup>2</sup>C和UART </li><li>支援双线程式设计 </li><li>4通道10位ADC </li></ul> </li><li>WQFN-40L 6x6封装 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

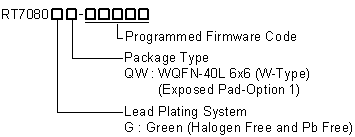

RT7080 订购信息
