RT7220B是供反激式电源使用的高性能同步整流控制器，它通过检测MOSFET漏极电压决定同步整流开关的工作状态，可将关断过程的死区时间缩减至最小以提高效率，支援工作在电流连续模式、电流不连续模式和准谐振模式，可在3.3V~13V的输出电压范围内工作。</br>RT7220B内建高耐压线性稳压器，可在输出电压很低时提供足够的MOSFET驱动电压。它在轻载时以节能模式工作，可将工作电流降低至160μA以下，进入节能模式的时间点是通过对MOSFET门极驱动脉冲的计数来确定的。

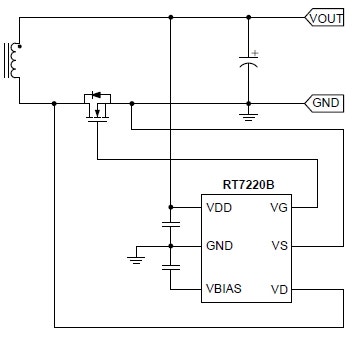

RT7220B 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>适用于反激式电源的低侧同步整流，支援CCM/DCM/准谐振模式 </li><li>适合3.3V~13V输出使用 </li><li>正常模式下电流消耗低于1.2mA（不包括驱动器消耗） </li><li>节能模式下电流消耗低于160μA </li><li>输出电压低于5V时由内建高压LDO为驱动电路供电 </li><li>用自我调整跟踪控制优化效率 </li><li>最高工作频率：180kHz </li><li>保护特性 <ul class="lv2"> <li></li><li>栅极驱动器有6V电压限制 </li><li>启动前栅极驱动器输出维持低电平状态 </li><li>可选最短时长保护 </li><li>可选同步整流最短关断时间 </li><li>VG快速关断（总延时低于50ns） </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

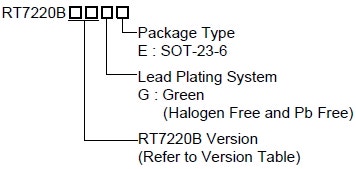

RT7220B 订购信息
