RT7296D为高效率，电流模式操作的同步降压型DC/DC转换器，输入电压范围4.5V至17V，输出电流可达3A。内部整合的高端80mΩ 与低端30mΩ 导通阻的MOSFET 可达到高转换效率。电流模式操作提供快速的暂态响应与内部的补偿架构，逐周期形式的限流机制可在输出短路时提供电路保护作用。RT7296D提供完整的保护功能，包括输入欠电压闩锁、输出低电压保护、过电流保护与过热关机保护。另可借由EN/SYNC 脚位讯号调整PWM操作频率。RT7296D支援TSOT-23-8 (FC) 包装。

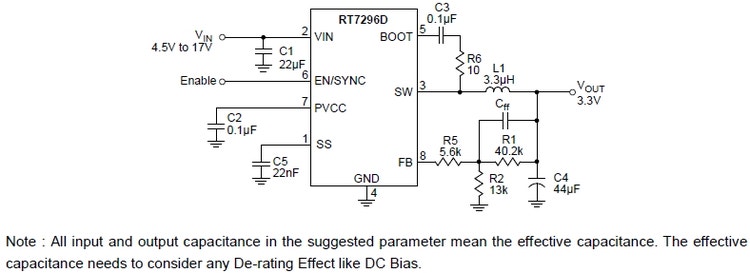

RT7296D 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>4.5V至17V输入电压范围 </li><li>输出电流3A </li><li>内部整合N通道MOSFET </li><li>电流模式控制 </li><li>固定切换频率:800kHz </li><li>外部时脉讯号同步: 200kHz 至 2MHz </li><li>逐周期的电流限制保护 </li><li>轻载时操作于Power-Save Mode </li><li>外部软启动功能 </li><li>输入欠电压闩锁保护 </li><li>输出欠电压保护 </li><li>过热关机保护 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

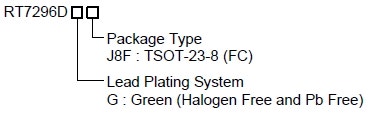

RT7296D 订购信息
