RT7753GCS系列产品的设计目标是与RT7202这样的控制器配合以提供一个使用USB电源传输（USB PD）协定的或可程式设计的电源适配器，它具备高效电源的控制架构，同时具有极低的待机消耗，5V输出的待机功耗低于50mW。<Br>RT7753GCS使用了许多全新的技术来确保获得宽范围的输出电压，如（1）通过使用DMAG引脚对输出电压进行检测并调节系统的回路增益，改变不同输出电压下的过压保护阈值以实现对外部设备的保护，并且调节电流限制阈值以符合功率有限电源的安全需求；（2）具备广泛的保护特性，其中包括大电容Brown-in/Brown-out保护、VDD过压保护（VDD OVP）、输出过压、欠压保护（Output OVP/UVP）、次级整流器短路保护（SRSP）和外部温度过高保护（External OVP）；（3）为实现恒定输出功率调节而在CS引脚连接一只电阻，可在全输入电压范围内获得精确的线路补偿；（4）具备多种保护特性以应对次级元件如RT7202、分流式调节器等的失效。<Br>在实际的应用中，建议将RT7753GCS与次级控制器RT7202共同使用以构成可靠、强壮又安全的设计，以便能面对诸如设备、电缆、插头、插座等各种可能的错误连接状况。

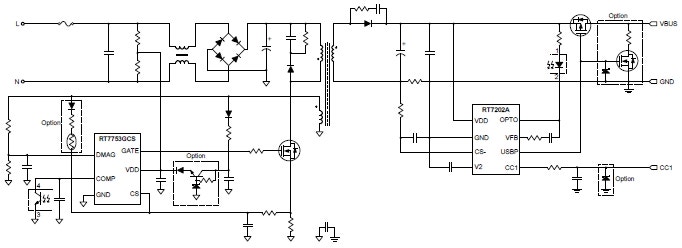

RT7753GCS 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>经过优化的自我调整式输出功率调节 <ul class="lv2"> <li></li><li>VDD工作电压范围：9V~42V </li><li>自我调整式输出过压保护 </li><li>自我调整式过流保护 </li><li>自我调整式回路增益控制，确保回路稳定 </li></ul> </li><li>高效率 <ul class="lv2"> <li></li><li>轻载和空载时工作于节能模式 </li></ul> </li><li>具备众多保护特性 <ul class="lv2"> <li></li><li>大电容Brown-in/Brown-out保护 </li><li>VDD过压保护 </li><li>输出过压/欠压保护 </li><li>周边温度过高保护 </li><li>次级整流器短路保护 </li><li>可调线路补偿 </li></ul> </li><li>其他 <ul class="lv2"> <li></li><li>5V输出待机功耗低于50mW </li><li>驱动器驱动能力：300mA/-300mA </li><li>采用SmartJitter™技术 </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

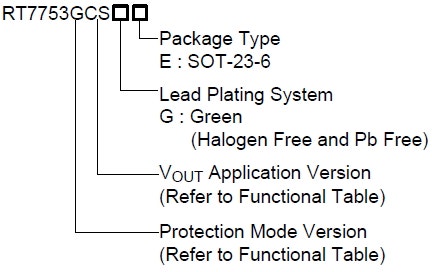

RT7753GCS 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT7753GCS
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT7753GCS
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>USB PD电源和可程式设计电源适配器 </li></ul></div>
