RT7790GBQ 专为搭配 RT7208E 等控制器而设计，可提供完整的 USB PD（Power Delivery）或可程式化电源供应器（Programmable Power Adapter）解决方案。 RT7790GBQ 整合双向控制功能，可透过脉冲变压器向 RT7208E 传送零电压切换（ZVS）脉冲讯号，并接收回授脉冲讯号以调节输出电压与输出电流。因此，RT7790GBQ 可借由一次侧 MOSFET 的 ZVS 操作达成高转换效率，并降低高输入电压条件下 MOSFET 的工作温度。 RT7790GBQ 具备多项创新的系统控制功能，可支援宽范围输出电压设计。其中一项创新功能为 DMAG 脚位，可感测输出电压并自动调整控制回路增益以维持系统稳定性，同时调整电流限制以符合限制功率来源（LPS, Limited Power Source）安全规范要求。 RT7790GBQ 同时内建完整保护功能，包括大电容输入欠压启动/关机保护（Bulk-Capacitor Brown-In/Brown-Out Protection）、VDD 过压保护（VDD OVP）、输出过压/欠压保护（Output OVP/UVP）、同步整流器短路保护（SRSP, Secondary Rectifier Short-Circuit Protection）以及外部过温保护（External OTP）。 在定功率输出应用中，可透过于电流感测电阻与 CS 脚位之间连接补偿电阻，实现全输入电压范围下的精准线路补偿（Line Compensation）。此外，RT7790GBQ 还提供多种保护机制，以防止次级侧元件故障所造成的系统异常。 实际应用中，RT7790GBQ 搭配次级控制器 RT7208E 使用，可实现稳健且安全的电源设计，有效避免因不同装置、线材、插头及插座错误连接而产生的各种潜在故障情况。

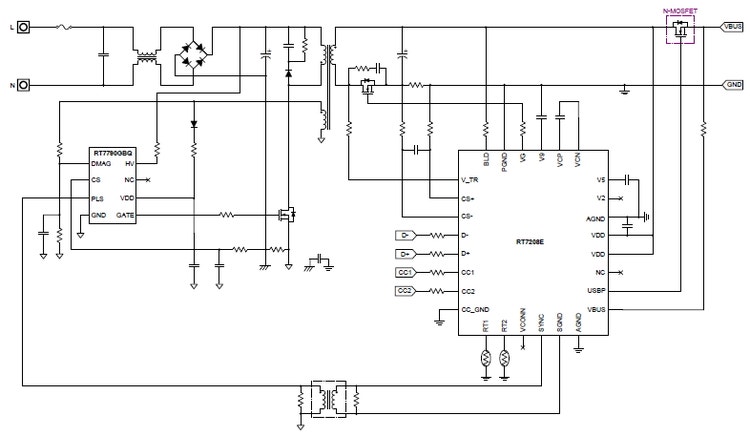

RT7790GBQ 电路图
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Bi-Direction Control <ul class="lv2"> <li></li><li>Using a Pulse Transformer to Deliver ZVS Pulse Signal and Receive Feedback Pulse Signal </li></ul> </li><li>Optimized for Adaptive Output Power <ul class="lv2"> <li></li><li>Wide VDD Range : 8V to 37V </li><li>Adaptive Output Over-Voltage Protection </li><li>Adaptive Zero-Duty Mode Control </li><li>Adaptive Loop Gain Control for Loop Stability </li></ul> </li><li>High Efficiency <ul class="lv2"> <li></li><li>DCM ZVS Mode at High Line and Heavy Load </li><li>Green Mode and Zero-Duty Mode at Light Load or No Load </li></ul> </li><li>Comprehensive Protection Features <ul class="lv2"> <li></li><li>Bulk-Capacitor Brown-In and Brown-Out Protection </li><li>VDD Over-Voltage Protection </li><li>Output Over-Voltage and Under-Voltage Protection </li><li>External Over-Temperature Protection </li><li>Secondary Rectifier Short-Circuit Protection </li><li>Programmable Line Compensation </li></ul> </li><li>Others <ul class="lv2"> <li></li><li>Multi-Mode PWM Operation </li><li>Driver Capability : 200mA/-300mA </li><li>SmartJitter<sup>TM</sup> Technology </li></ul> </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

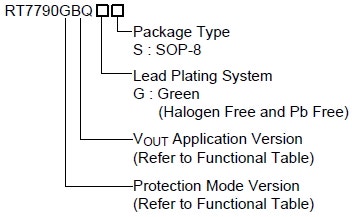

RT7790GBQ 订购信息
