RT7880 是一款 USB Type-C Power Delivery (USB-C PD) 与 PWM 升降压控制器，透过特定功能的高度整合与灵活性，适用于 USB PD provider 应用。此 IC 内嵌 ARM Cortex<sup>TM</sup>-M0 MCU，可处理通讯协定的各种功能、PWM 转换器的智慧控制、基于韧体的保护功能，以及客制化功能。此 IC 具备基于硬体的保护功能，例如电感峰值电流限制、VBUS 过压保护 (VBUS OVP)、VO 欠压保护 (VO UVP)，以及 VCONN 电流限制保护，因此这些保护功能具备更快速的响应，即使 MCU 未启动时仍可正常运作。RT7880 因此可为 USB-PD Provider 应用提供优异的 USB PD 解决方案，并具备最少外部元件与简易 PCB 布局。

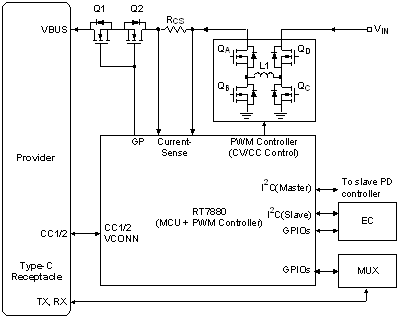

RT7880 电路图
