RT8016为高效率脉波宽度调变(PWM)的降压型 DC/DC 转换器。输入范围2.5V 至5.5V时，输出电流可达1A。可借由外部电阻调整输出电压1V 至3.3V，调整间距0.1V，适用于由单一锂电池供电的可携式电子装置，例如行动电话、PDA与掌上型装置。RT8016提供了两种操作模式:PWM/低压降自动切换模式与关机模式。内部的低R<sub>DS(ON)</sub>同步整流元件降低了操作在PWM模式的的导通损耗，且不需外加萧特基二极体于实际设计中。RT8016当PWM操作时无法连续导通上端P-MOSFET时，进入低压降模式。当EN脚位为低电位时，进入关机模式，消耗电流小于0.1μA。由于操作在固定频率1.5MHz，可由较小封装的元件进行滤波设计得到较平滑的切换涟波。采用WDFN-6L 2x2的小型封装可应用于较小的PCB面积设计中。其它的特色中包括缓启动、具2%精确率的内部低参考电压、过温保护与过电流保护等机制。

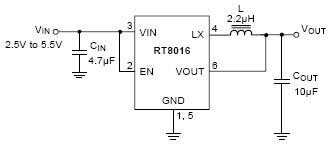

RT8016 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>2.5V 至 5.5V 的输入电压范围 </li><li>可调输出电压范围0.6V 至 V<sub>IN</sub> </li><li>1A输出电流 </li><li>效率达95% </li><li>不需外加萧特基二极体 </li><li>1.5MHz 定频PWM操作 </li><li>具有6-引脚的 WDFN封装规格 </li><li>符合RoHS规范与100%的引脚无铅特性 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

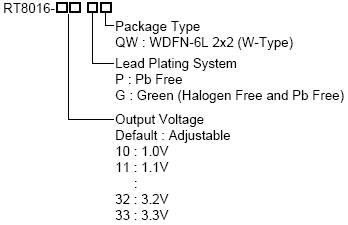

RT8016 订购信息
