RT8023包含两组低压差线性稳压器(LDO)与一组输入电压范围2.6V至5.5V的降压型DC/DC转换器，可调输出电压值0.8V至 5V。每组稳压器具备独立的致能(EN)与电源良好信号指示(PGOOD)脚位，可简易的控制各组稳压器的启动顺序。每组LDO有独立的电源输入并在低压差输出时可提供最大700mA(LDO1) 与350mA(LDO2)的电流输出，并具备良好的电源抑制比(PSRR)，可使用低ESR的小型陶瓷电容进行节省电路面积的设计。所有上述优点使RT8023适用于高度要求电路特性与空间尺寸的RF与无线应用的可携式装置设计中。其它特色包括具备高输出准确率、过电流保护与40μs的快速导通时间。采用PWM电流模式控制的降压型转换器，操作频率1.2MHz。由于操作在高切换频率，故可适用于采用价格较低廉、较小尺寸的电容与电感元件的应用电路设计中。内建低导通阻的功率开关，增进了整体效率并减少了需要外加萧特基二极体的必要性，借由近100%责任周期的操作提供了低压差转换的应用可有效延长掌上型装置的电池使用寿命。

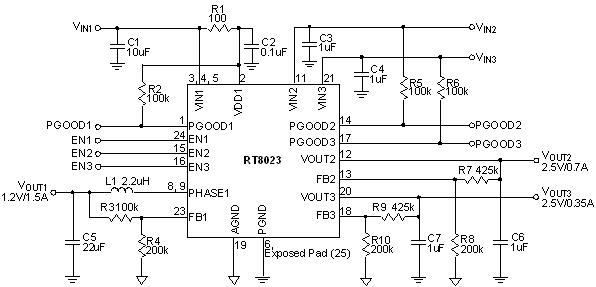

RT8023 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>转换器输入电压范围 : 2.6V 至5.5V, LDO 输入电压范围 : 2.4V 至5.5V </li><li>低杂讯LDO 适用于 RF 设计应用中 </li><li>极快速的输入/负载暂态回应 </li><li>LDO 导通时间小于40μs </li><li>LDO只需1μF 的输出稳压电容 </li><li>电流限制保护 </li><li>输出最高达1.5A的高效率降压型转换器 </li><li>1.2MHz 固定切换频率 </li><li>内建低 R<sub>DS(ON)</sub> 开关元件 </li><li>不需外接萧特基二极体 </li><li>0.8V的参考电压允许低电压输出 </li><li>近100%的责任周期操作允许输出低压降转换 </li><li>< 2μA 的关机电流 </li><li>输出电压电源良好信号指示 </li><li>降压型转换器内建缓启动机制 </li><li>简易的启动顺序控制 </li><li>过温保护 </li><li>短路保护 </li><li>加强散热特性的24-引脚 WQFN封装 </li><li>符合RoHS规范与100%的引脚无铅特性 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

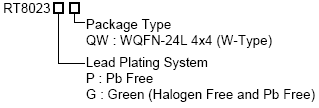

RT8023 订购信息
