RT8057 为高效率的脉波宽度调变(PWM)降压型DC/DC转换器，于输入范围2.7V 至5.5V时，输出电流可达1A。RT8057适用于由单一锂电池供电的可携式电子装置，例如行动电话、PDA、掌上型装置、游戏机与相关配件。内部的低R<sub>DS(ON)</sub>同步整流元件降低了操作在PWM模式的的导通损耗，且不需外加萧特基二极体于实际设计中。RT8057当PWM操作时若无法连续导通上端P-MOSFET时，则进入低压降模式。当EN脚位为低电位时，进入关机模式，消耗电流小于1μA。由于操作在固定频率2.25MHz，由开关切换产生的电压涟波成分可轻易地由小型封装的滤波元件滤除。RT8057采用WDFN-6SL 2x2的封装规格。

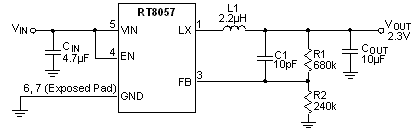

RT8057 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>2.7V 至 5.5V 的输入电压范围 </li><li>2.25MHz 定频PWM操作 </li><li>1A输出电流 </li><li>效率达90% </li><li>0.6V 的参考电压允许低电压输出 </li><li>内建缓启动设计 </li><li>不需外加萧特基二极体 </li><li>内建的补偿机制减少所需外加的元件数 </li><li>低压降操作 : 100% 的责任周期 </li><li>符合RoHS规范与无卤特性 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

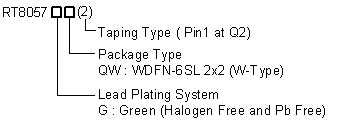

RT8057 订购信息
