RT8110为适用于单一电源应用的单相同步降压转换器的定频PWM控制器，并内建MOSFET驱动设计，其特色为内建稳压调节器允许广输入电压范围应用与小封装规格。一组内建的预先调节调节器驱动一组外部BJT以提供调节电压予VCC电源，因此控制器可操作在广输入电压范围。RT8110 采用电压模式控制并具备内部补偿以简化转换器之设计。内部0.8V的参考电压允许低输出电压的应用，切换频率固定于400kHz以降低外部被动元件的大小并节省电路板面积。低端MOSFET的 R<sub>DS(ON)</sub>被用于过电流保护所需的电感电流感测应用。RT8110 提供低电压保护、电流限制、过电流保护与过温保护。

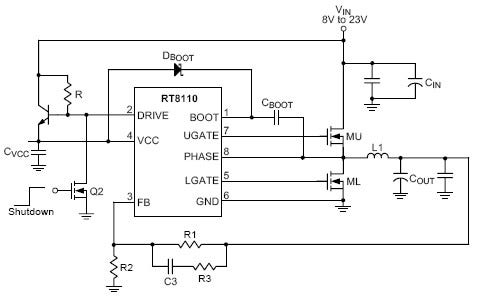

RT8110 电路图
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>0.8V 内部参考电压 </li><li>整合非重迭式的MOSFET驱动器 </li><li>高直流增益电压模式的PWM控制架构 </li><li>固定400kHz 切换频率 </li><li>快速暂态回应 </li><li>高达80% 的责任周期范围 </li><li>过电流保护 </li><li>低电压保护 </li><li>过热关机保护 </li><li>小型的TSOT-23-8封装 </li><li>符合RoHS规范与100%的引脚无铅特性 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

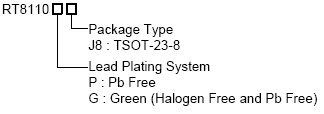

RT8110 订购信息
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT8110
technicalDocumentMultipleTable
design-tools
RT8110
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>机上盒电源 </li><li>PC子系统电源 </li><li>电缆数据机、DSL数据机 </li><li>DSP核心和通信处理器电源 </li><li>记忆体电源 </li><li>个人电机周边设备 </li><li>工业电源 </li><li>低电压电源 </li></ul></div>
