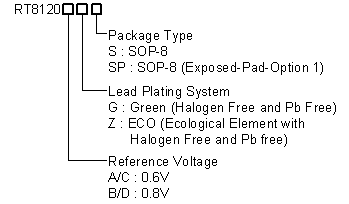

RT8120 是一款单相同步降压 PWM DC-DC 控制器，设计用于驱动两个 N-MOSFET。它提供高精度、可程式化的输出电压，并透过内部 0.8V ±1%（可选 0.6V ±1.5%）参考电压，针对低电压需求进行精准调节。RT8120 采用单一回授回路电压模式 PWM 控制，以实现快速暂态响应。固定频率 300kHz 的振荡器可缩小外部电感与电容元件尺寸，以节省 PCB 板面积。RT8120 可提供快速暂态响应，以满足高电流输出应用，同时将外部元件数量降至最低。它适用于高效能绘图处理器、DDR 与 VTT 电源。RT8120 整合外部补偿误差放大器、内部软启动与输出启用功能。RT8120 采用 SOP-8 与 SOP-8 (Exposed Pad) 封装。

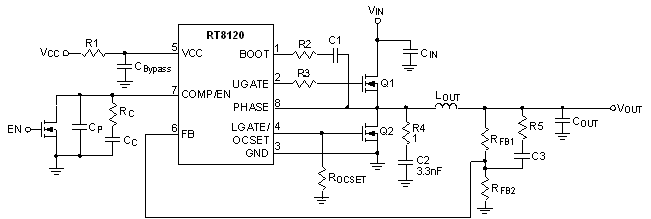

RT8120 电路图
