RT8152A/RT8152B 是一款单相 PWM 控制器，内建 MOSFET 驱动器，并符合 Intel IMVP6.5 电压调节器规范，可满足行动平台 CPU 核心与绘图核心的供电需求。 RT8152A/RT8152B 采用立锜专有的 G-NAVP 架构，此架构源自有限直流增益补偿器的固定导通时间控制技术，可轻松满足 Intel 主动电压定位需求，简化系统设计与调校流程。输出电压透过 7 位元 VID 码进行设定，内建高精度数位类比转换器可将 VID 设定值转换为 0V 至 1.5V 的输出电压范围，每级调整解析度为 12.5mV，系统电压精度最高可达 ±1.5%。 本产品支援即时 VID 切换与即时工作模式切换功能，完全符合 Intel IMVP6.5 规范要求。RT8152A/RT8152B 可于单相模式与二极体模拟模式下运作，并可依据负载条件自动提高转换效率，在不同工作模式下效率最高可达 90%。 输出负载线可透过调整误差放大器的直流增益进行设定，配合适当补偿设计，可获得最佳化的负载暂态响应效能。晶片也可透过外接电容控制软启动时间及输出电压转换斜率，并支援电感直流电阻与分流电阻两种电流感测方式。 RT8152A/RT8152B 提供电源良好指示讯号与温度降频控制讯号，以符合 Intel IMVP6.5 绘图核心规范需求，同时提供额外的时脉启用功能以支援 CPU 核心应用。 此外，产品内建完整保护功能，包括过压保护、欠压保护、负电压保护、过电流保护以及过温保护，可有效提升系统可靠性与安全性。 RT8152A/RT8152B 采用小尺寸 WQFN-32L 5mm × 5mm 封装。

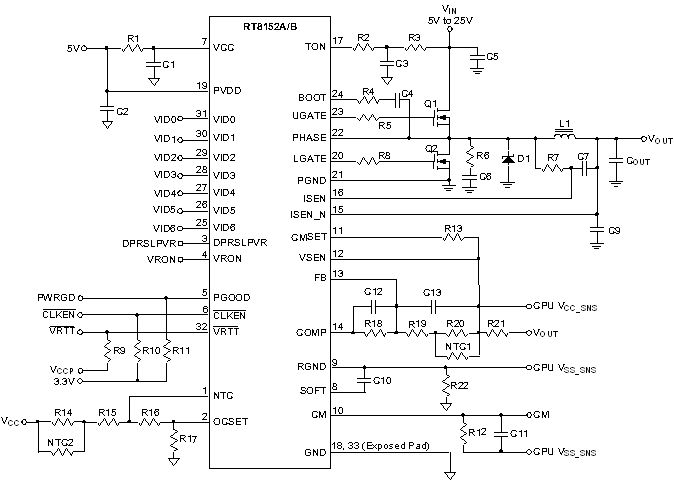

RT8152A/RT8152B 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Single Phase PWM Controller with Integrated MOS Driver. </li><li>Low-Gain Compensator with CCRCOT Topology (Constant Current Ripple Constant On Time) </li><li>7-bit DAC </li><li>0.8% DAC Accuracy </li><li>1.5% or 11.5mV System Accuracy </li><li>Fixed V<sub>BOOT</sub> (For CPU Core Only) </li><li>Differential Remote Voltage Sensing </li><li>G-NAVP Topology (Green-Native AVP) </li><li>Programmable Output Transition Slew Rate Control </li><li>System Thermal Compensated AVP </li><li>Ringing Free Mode at Light Load Condition </li><li>Fast Transient Response </li><li>IMVP6.5 Compatible Power Management States </li><li>Power Good </li><li>Clock Enable Output (For CPU Core Only) </li><li>Thermal Throttling </li><li>Current Monitor Output </li><li>Switching Frequency Up to 1MHz </li><li>OVP, UVP, OCP, OTP, UVLO, NVP </li><li>32-Lead WQFN Package </li><li>RoHS Compliant and Halogen Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

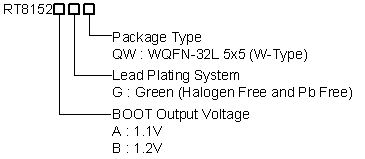

RT8152A/RT8152B 订购信息
