RT8203 为双开关型电源供应器(Switch Mode Power Supply ,SMPS)的驱动控制器，适用于电池驱动系统的应用。RT8203包含两组脉波宽度调变(PWM)控制器，输出可调范围为2V至5.5V，亦可适用于固定5V或3.3V的应用中。此外并包含两组线性调节器，可提供5V与3.3V的固定电压输出。每组线性调节器可提供至100mA的输出电流以供应SMPS 的自举电容充电应用。RT8203包括上电顺序、电源良好信号指示(PGOOD)、内部缓启动以及输出放电缓关机功能以防止关机过程的负压产生。RichTek专有的Mach-PWM™ 具备“即时”回应、PWM固定导通时间的控制架构不需透过电阻感测即可进行操作，并能在固定的切换频率下针对负载的暂态变化提供100ns快速回应。独有的超音速模式可让频率操作在25kHz 以上，降低在音讯应用上的干扰。其他特色包含二极体模拟，增加在轻载应用时的效率、PWM固定频率操作模式，降低RF干扰。RT8203 提供由脚位输入讯号决定切换频率的功能，允许SMPS的输出5V/3.3V的操作条件分别在200kHz/300kHz或 400kHz/500kHz 工作频率。RT8203提供SSOP-28 的封装。

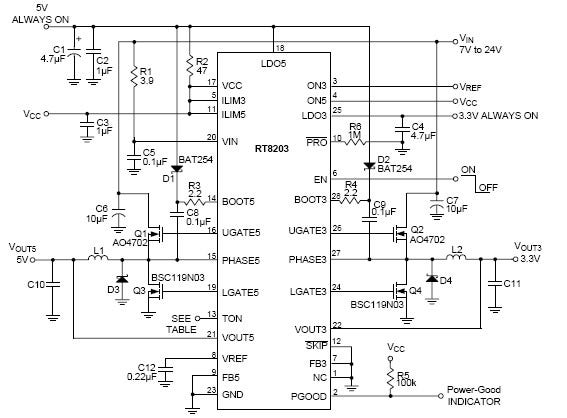

RT8203 电路图
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>不需电流感测电阻 </li><li>1.5% 输出电压精准度 </li><li>具备3.3V与 5V ，供自举电容充电100mA的线性调节器 </li><li>内部缓启动以及输出放电缓关机功能 </li><li>Mach-PWM独有的 100ns负载步阶回应 </li><li>3.3V与5V 的固定或可调出 </li><li>7V 至 24V输入电压范围 </li><li>可操作在25kHz (最小值)的超音速模式 </li><li>电源良好信号指示(PGOOD) </li><li>过电压保护 </li><li>低电压保护 </li><li>过温保护 </li><li>符合RoHS规范与100%的引脚无铅特性 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

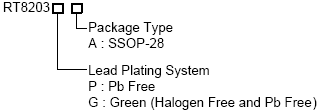

RT8203 订购信息
