RT8209N/P PWM 控制器具有转换效率高、卓越的瞬态回应特性和高精度的电压输出，可将笔记型电脑的电池高电压转换为 CPU 内核、图形处理器、I/O 和晶片组需要的低压电源。由于采用固定导通时间控制技术，它可很容易地面对输入/输出比很宽的环境，对负载瞬变提供 100ns 的“即时”回应速度，同时维持基本固定的工作频率。RT8209N/P 不使用传统的电流模式 PWM 控制架构中的电流检测电阻，降低了成本，提高了效率。其效率的进一步提升还来自于其具有的驱动大型同步整流 MOSFET 的能力，使其可将电池高电压直接转换为系统需要的电压，这也使得效率实现了最大化，可为 CPU 内核、晶片组、DRAM 或其它低压系统提供低达 0.75V 的电源供应。RT8209N 的封装为 WQFN-16L 3x3，RT8209L 的封装为 WDFN-14L 3.5x3.5。

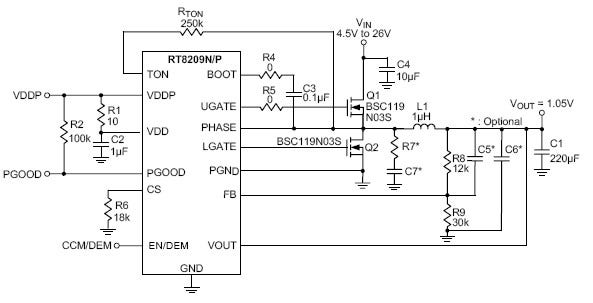

RT8209N/RT8209P 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>极高的效率 </li><li>电阻可设定正电流限制阈值，电流经下桥 R<sub>DS(ON)</sub> 进行检测 </li><li>4700ppm/°C 电流检测 </li><li>100ns 负载阶跃快速回应能力 </li><li>全输入、负载范围内 1% V<sub>FB</sub> 精度 </li><li>4.5V~26V 输入电压范围 </li><li>电阻可设定工作频率 </li><li>集成自举开关 </li><li>集成负电流限制器 </li><li>电压瞬态过冲消除 </li><li>过压保护/欠压保护 </li><li>内置软启动和输出软放电功能 </li><li>Power Good 指示 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

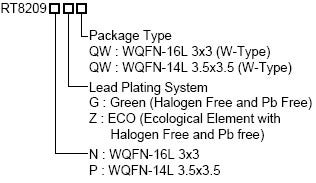

RT8209N/RT8209P 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8209N/RT8209P
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8209N/RT8209P
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>笔记型电脑 </li><li>系统电源 </li><li>I/O 电源 </li></ul></div>
