RT8230A/B/C/D/E 是双通道 Buck 控制器，用于为电池供电的系统生成稳定的电压。其中包含两组输出电压 2V~5.5V 可调的 PWM 控制器和两组固定 5V/3.3V 输出的线性稳压器，每组线性稳压器可输出最大 100mA 的电流，5V 线性稳压器为 PWM 驱动器提供电源。RT8230A/B/C/D/E 具有片内上电时序管理功能、Power Good 输出、内部软启动功能，还有输出端关机软放电功能避免负电压的出现。</br>它采用固定导通时间控制技术，没有电流检测电阻，对负载瞬变具有 100ns 快速回应能力。为了消除音讯应用杂讯，还具有超声工作模式，可将工作频率维持在 25kHz 以上。为了获得最高的转换效率，它在轻载条件下会自动进入二极体模拟模式工作。其封装为 WQFN-20L 3x3。

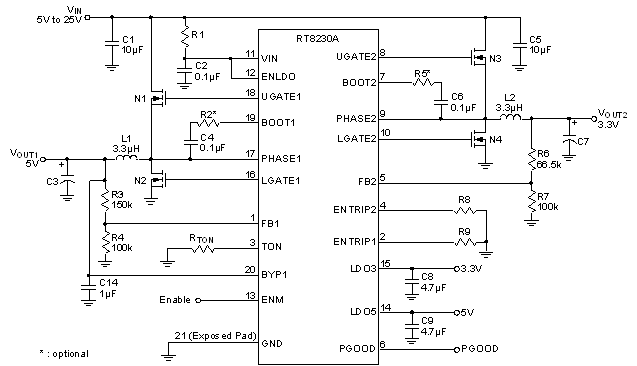

RT8230A/RT8230B/RT8230C/RT8230D/RT8230E 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>最高责任周期达 96% </li><li>CCRCOT 控制技术，具备 100ns 步阶负载响应能力 </li><li>5V~25% 输入电压范围 </li><li>两路可调输出电压范围： <ul class="lv2"> <li></li><li>CH1：2V~5.5V </li><li>CH2：2V~4V </li></ul> </li><li>3.3V/5V LDO 输出能力：100mA </li><li>3.3V LDO 输出电压精度 1% </li><li>经 TON 设定频率可调 </li><li>4700ppm/<sub> </sub>°C R<sub>DS(ON)</sub> 电流检测 </li><li>可调电流限制与使能控制使用同一端子 </li><li>内建软启动和阮芳殿功能 </li><li>热关机保护 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

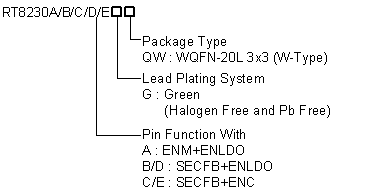

RT8230A/RT8230B/RT8230C/RT8230D/RT8230E 订购信息
