RT8237K 是用于将笔记型电脑电池高电压转换为低电压供 CPU 内核、I/O 介面、记忆体等使用的 Buck 控制器，具有效率高、瞬态回应特性好、输出电压精度高等特性，它采用 COT 固定导通时间控制架构，能轻松应对输入、输出电压比很宽的应用，对负载瞬变提供 100ns 级的及时回应，同时还能保持其工作频率基本不变。</br>RT8237K 无需使用传统电流模式 PWM 控制器需要使用的电流检测电阻，降低了成本，提高了效率。轻载时，拥有大型同步整流 MOSFET 开关的驱动器进入二极体模拟模式工作，进一步提升了效率表现。它有预设的工作频率可供选择，减少了新设计的工作量。其应用目标是为工作电压最低达 0.7V 的 CPU 内核、晶片组、记忆体等电路供电。其出货封装形式为 VQFN-16L 3x3。

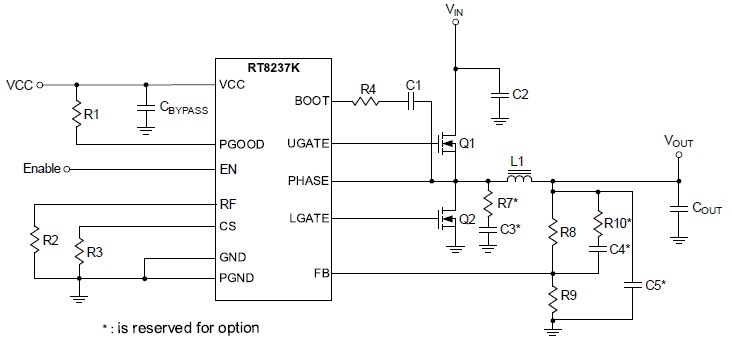

RT8237K 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>输入电压范围：4.5V-26V </li><li>输出电压范围：0.7V-3.3V </li><li>内建 0.5% 精度 0.7V 参考电源 </li><li>100ns 负载阶跃回应 </li><li>使用温度系数为 4700ppm/°C 的电流源对电流检测用 R<sub>(DS)ON</sub> 进行补偿 </li><li>下桥电流限制阈值可调 </li><li>4 个可选工作频率 </li><li>软启动控制 </li><li>可驱动大型同步整流 MOSFET </li><li>集成自举开关 </li><li>内建过压保护、过流保护和欠压闭锁保护 </li><li>过热关机保护 </li><li>Power Good 指示 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

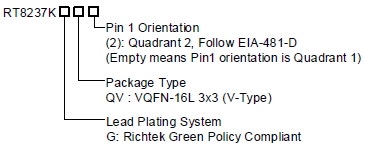

RT8237K 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8237K
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8237K
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>笔记型电脑 </li><li>CPU 内核电源 </li><li>工作电压低达 0.7V 的晶片组、记忆体电源 </li><li>通用 DC-DC 电源 </li></ul></div>
