RT8296B是一个高效率，单片同步降压型DC / DC转换器，在4.5V至23V的输入电源下可提供高达3A的输出电流。RT8296B的电流模式架构和外部补偿使得在很宽范围的负载及输出电容中，都可得到最佳的瞬态响应。逐周期电流限制保护元件不受输出短路影响，软启动功能可在启动过程中防止了输入电流过冲。故障保护包括输出欠压保护和过温保护。低电流(<3μA)消耗之电源关闭模式会将输出关闭，有助于电池供电系统的电源管理。RT8296B提供SOP- 8 (裸露焊盘)封装。

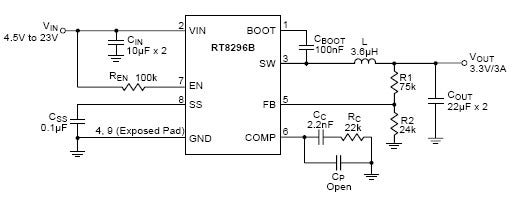

RT8296B 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>±1.5% 高精确度回馈电压 </li><li>输入电压范围：4.5V至23V </li><li>3A输出电流 </li><li>集成N-MOSFET开关 </li><li>电流模式控制 </li><li>1.2MHz固定操作频率 </li><li>输出电压可调：0.8V至15V </li><li>效率最高可达95% </li><li>可调软启动 </li><li>可采用低ESR的陶瓷电容做为输出电容 </li><li>逐周期过电流保护 </li><li>输入欠电压锁定 </li><li>输出欠压保护 </li><li>过热保护 </li><li>符合RoHS规范与无卤特性 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

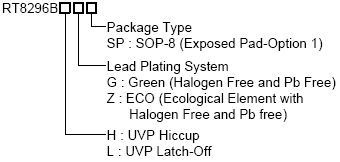

RT8296B 订购信息
