RT8509是高性能的开关模式Boost转换器，目的是为动态矩阵薄膜电晶体液晶显示幕提供稳定的电源供应。它采用电流模式控制架构、固定工作频率的脉宽调制（PWM）电路，集成了N-MOSFET开关，转换效率高，瞬态回应速度快。其输入电压范围为2.8V~14V，使用外接电阻分压器进行调节的输出电压最高达24V，最大峰值电流限制典型值为3.5A，具有可调软起动、过压保护、过热保护等特性。其封装为WDFN-10L 3x3。

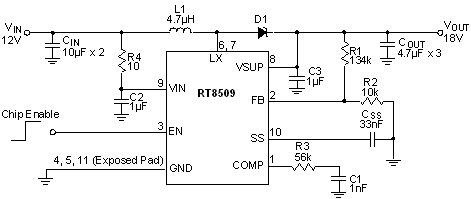

RT8509 电路图
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>效率高达90% </li><li>输出电压可调，最高达24V </li><li>输入电压范围：2.8V~14V </li><li>1.2MHz固定工作频率 </li><li>可调软起动 </li><li>输出过压保护 </li><li>过热保护 </li><li>10引脚WDFN封装 </li><li>符合RoHS规范，不含卤素 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher
RT8509 订购信息
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT8509
technicalDocumentMultipleTable
design-tools
RT8509
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>GIP TFT LCD 显示幕 </li></ul></div>
