RT8509A 是用于为 TFT-LCD 供电的高性能 Boost 架构 DC/DC 转换器，采用电流模式控制架构、工作频率固定的 PWM 控制电路，集成了功率开关，具有高转换效率和快速的瞬态回应特性。其输入电压范围为 2.4V~14V，输出电压可用电阻分压器进行设定，最高可达 24V。其最高峰值电流限制为 4.5A（最小值），还具有可调节的软启动、过压保护和过温保护等特性。其封装为 WDFN-12L 5x5。

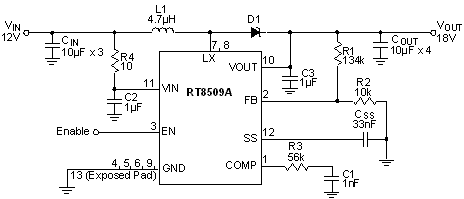

RT8509A 电路图
