RT8549L 是一款高效率升压转换器，具备 4 通道 LED 驱动器，支援 60V 最大输出电压。它专为采用 LED 作为光源的 LCD 面板应用而设计。升压转换器可产生适当的输出电压，以并联驱动四串 LED，且每串最多支援 18 颗 LED。RT8549L 支援 4.2V 至 24V 的宽输入电压范围，并提供 SMBus 介面以控制 LED 亮度调光模式、工作频率与 LED 电流。内部 150mΩ、60V 功率开关搭配电流模式控制，可提供高效率运作。RT8549L 采用 WDFN-16L 5x5 封装，可实现针对 PCB 空间最佳化的解决方案。

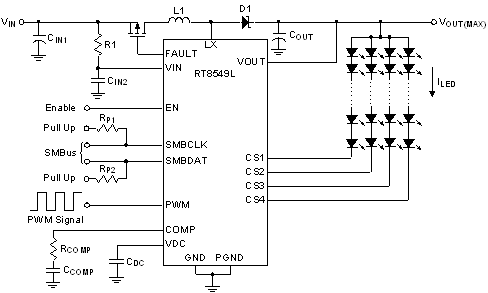

RT8549L 电路图
