RT8555 是一款用于白光 LED 的高效率驱动器。它适用于单节 / 两节电池输入，以驱动包含六串并联且每串最多 10 颗 WLED 的 LED 灯条。内部电流汲入器支援最大 ±2% 电流不匹配，可在每串 LED 中实现优异的亮度均匀性。为提供电流汲入器运作所需的足够余裕，升压控制器会监测回授脚位的最低电压，并调节最佳化输出电压以提升电源效率。RT8555 具备 2.7V 至 24V 的宽输入电压工作范围，并包含 I<sup>2</sup>C 介面，用于控制调光模式、工作频率与 LED 电流。内部 100mΩ、36V 功率开关搭配电流模式控制，可提供过电流保护。RT8555 的切换频率可在 300kHz 至 2MHz 之间调整，可在效率与元件尺寸之间提供灵活性。RT8555 采用 WL-CSP-20B 1.65 x 2.05 (BSC)，间距 0.4mm 封装。

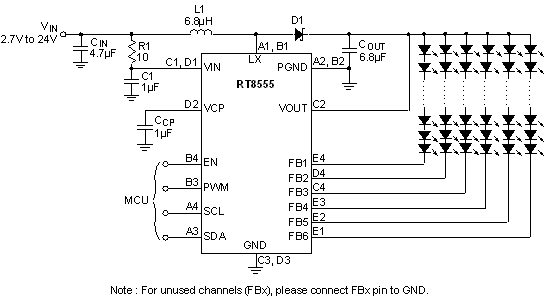

RT8555 电路图
