RT8567 是一款高效率的白光 LED 驱动器，设计用于驱动一个 LED 阵列作为 LCD 屏的背光源。它包含一个电流模式 Boost 转换器，用于驱动多达6个并联连接的 LED 串，每串 LED 可以是多达12只 LED 的串联，与每串 LED 连接的电流源的吸入电流匹配误差在最大 ±2% 以内，确保各 LED 串之间的亮度一致性。为了给电流源吸入电流的操作预留足够的空间，Boost 控制器对各个回馈引脚中的最低电压进行监测并进行调节，同时确保得到一个最优的转换效率。RT8567 的输入电压范围宽达 2.7V~24V ，能够输出可调的 5mA~40mA 的 LED 电流，内部 250mΩ 、43V 的功率开关以电流控制模式提供逐周期过流保护。 RT8567 还集成了 PWM 调光功能以获得精确的 LED 电流控制，输入的 PWM 调光信号频率可在 200Hz~25kHz 之间，调光过程不会造成任何流过 LED 或电感的冲击电流。 RT8567 的开关切换工作频率在 500kHz~2MHz 之间可调，这提供了效率和元件尺寸选择上的灵活性。RT8567 可以很薄的 WQFN-20L 3x3 封装形式供货。

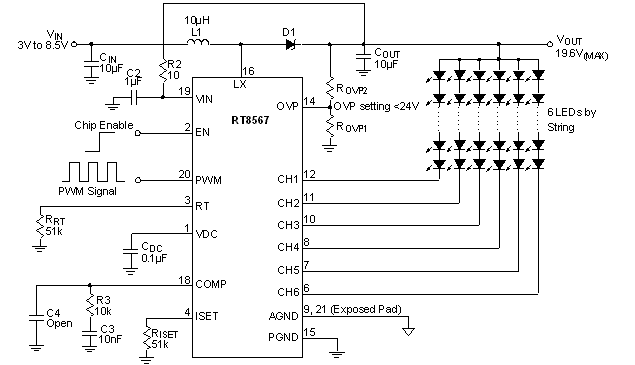

RT8567 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>宽输入电压范围：2.7V~24V </li><li>高输出电压：最高 43V </li><li>通道电流调整精度：±3% ；一致性误差：±2% </li><li>调光控制：外部 PWM 信号，频率可高达 25kHz </li><li>可调开关切换工作频率： 500kHZ~2MHz </li><li>内建软起动 </li><li>保护 </li><li>LED 串开路检测 </li><li>电流限制保护 </li><li>可程式设计过压保护 </li><li>过温保护 </li><li>20引脚 WQFN 封装 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

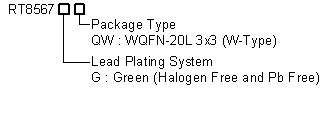

RT8567 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8567
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8567
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>UMPC and Notebook Computer Backlight </li><li>GPS<font size="4">,</font> Portable DVD Backlight </li></ul></div>
