RT8572 是每个通道输出能力达 60mA 的8通道 LED 驱动器。它是一个电流模式 Boost 转换器，100kHZ~1MHz 可调的开关切换频率可通过 RT 引脚进行调节，输入电压范围 9V~28V。输出电压 PWM 调节回路选择拥有最高 LED 串电压的 LED 引脚并将其调整至 0.6V ，借此容许各个 LED 串之间的电压不一致性存在。RT8572 自动检测并断开 LED 未连接或断裂的 LED 通道，避免出现 V<sub>OUT</sub> 的过压状况。一致性误差在 1.5% 以内的 LED 通道电流可以通过一只电阻进行设定，具有很高对比的纯数位式 PWM 调光可以通过在 PWM 引脚施加 PWM 信号予以实现。当异常状况（开路/短路/过热）发生时，一个状态信号将被传递到系统部分让 IC 进入关机状态。RT8572 的封装是 SOP-24 。

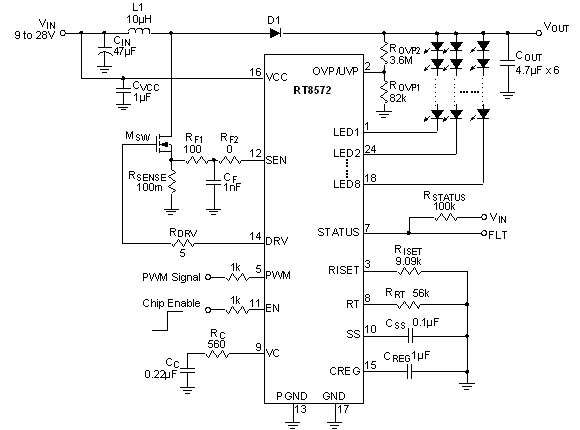

RT8572 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>宽输入电压范围：9V~28V </li><li>可调 Boost 控制器开关切换工作频率：100kHZ~1MHz </li><li>可程式设计通道电流 </li><li>通道电流一致性误差：±1.5% </li><li>外部调光控制 </li><li>Boost 部分 MOSFET 过流保护 </li><li>自动 LED 开路/短路保护，避免输出过压 </li><li>VCC 欠压保护 </li><li>可调过压保护 </li><li>欠压保护 </li><li>热关机保护 </li><li>开路/短路/过热状态异常指示信号 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

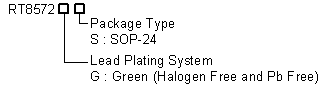

RT8572 订购信息
