RT8576A 是 4 通道 LED 驱动器，每个通道具备 120mA 的 驱动能力。它采用电流模式的 Boost 转换器进行升压，该转换器的工作频率可用 RT 引脚在 100kHz-1MHz 间进行调节，输入电压范围在 9V-28V 之间。</br>Boost 转换器的控制回路自动根据工作电压最高的 LED 串的需要选择并调节其输出电压，因而容许各 LED 串有不同的工作电压。当 LED 串存在任何未连接或断开的故障时，控制回路可自动检测到并断开其输出，因而可以避免过压状态的发生。</br>各 LED 串间的电流可用一只电阻进行设定，串与串间的不一致性在 1.5% 以内，通过在 PWM 引脚输入 PWM 信号可对各 LED 串的电流进行调节。</br>当有过压保护、短路或过热等异常状态发生时，有状态信号可被发送给系统，系统可使 RT8576A 进入关机状态。

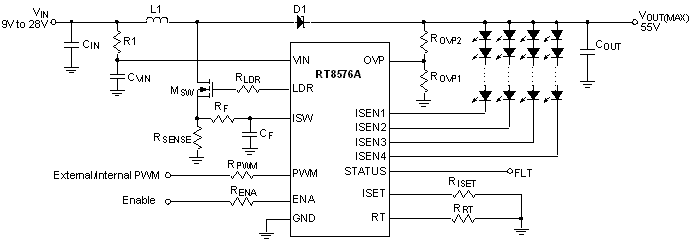

RT8576A 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>输入电压范围：9V-28V </li><li>Boost 转换器工作频率可调范围：100kHz-1MHz </li><li>通道电流最大可调值：120mA </li><li>通道电流一致性误差：1.5% </li><li>外接调光控制 </li><li>Boost 转换器开关过流保护 </li><li>自动 LED 开路、短路保护 </li><li>输入欠压闭锁保护 </li><li>输出过压保护阈值可调 </li><li>过热关机保护 </li><li>过压保护、短路、过热等异常状态指示 </li><li>符合 ROHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

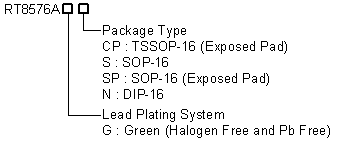

RT8576A 订购信息
