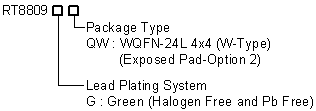

RT8809 是集成了驱动器的双相同步 Buck PWM 控制器，特别针对高性能图形处理器和电脑应用进行了优化。它将 G-NAVP<sup>TM</sup> PWM 控制器、两组包含自举二极体的 12V MOSFET 驱动器、输出电流监控和保护功能集成于单一的 WQFN-24L 4x4 封装中，采用了 DCR 和 R<sub>DS(ON)</sub> 电流检测技术。负载线电压定位和过流保护功能即依靠连续的电感 DCR 电流检测技术实现，而R<sub>DS(ON)</sub> 电流检测技术则用于精确的通道间的电流平衡，两种不同的电流取样方法各自获得了最佳的应用。RT8809 也使用了1位 VID 控制技术，这使其回馈电压得到调节并跟踪外部输入的参考电压。此外，它还具有输出电流指示、工作频率可调、Power Good 指示、外部补偿和使能/关机等功能。

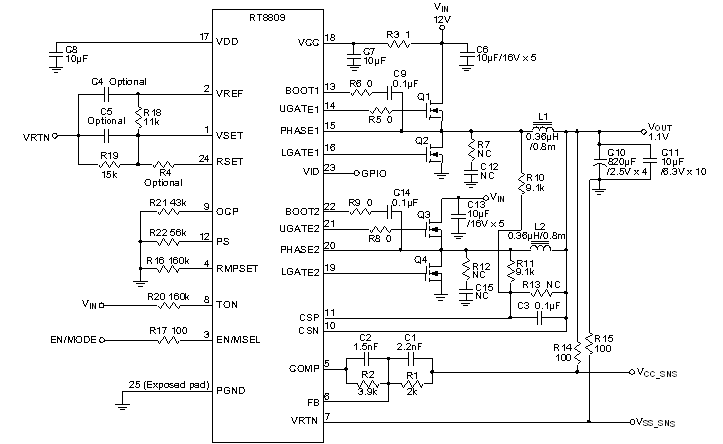

RT8809 电路图
