RT8810 是双相同步 Buck 控制器，集成了包括字句二极体在内的具有高驱动能力的 MOSFET 驱动器，外部元件少，空间占用少，可用于大电流的应用中，是一个紧凑、高效、安全而且成本低廉的解决方案。它可将回馈电压精确调节至与内部 0.6V 参考电压相同或是追踪 0.4V~2.5V 的外部参考电压，使用 MODE 引脚可控制其工作在单相或双相模式下，使之非常适合于 PCI-Express 介面图形卡之类的双输入场合。当它被设定在自动模式时，它可在轻载时以单相运行进行操作，因而可在全负载范围内维持其高效率的运作。此外，它的门极驱动电压是可调节的，这可使其效率得到最大化，性能得到最优化。它采用无损耗的 R<sub>DS(ON)</sub> 电流检测技术进行电流平衡和过流保护，具有可调节的软启动、相数可调和过流门限可调等特性。

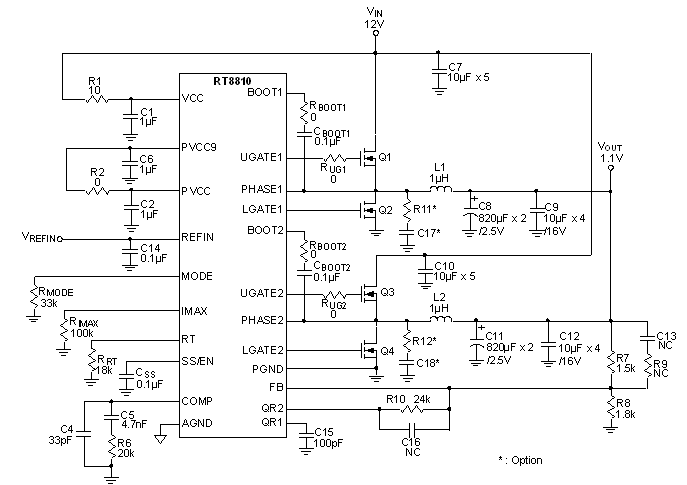

RT8810 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>4.5V~13.2V 工作电压范围 </li><li>支援手动/自动相数控制技术 </li><li>集成自举二极体 </li><li>无损 R<sub>DS(ON)</sub> 电流检测实现电流平衡 </li><li>100kHz~1MHz 可调工作频率 </li><li>电容可调软启动 </li><li>支持 0~80% 的责任周期 </li><li>可选内部/外部参考电压 V<sub>REF</sub> </li><li>电压模式 PWM 控制技术，使用外部回馈补偿 </li><li>相间交叉抖动挂起 (CJS<sup>TM</sup>) </li><li>可程式设计快速回应 </li><li>上下桥同时贯通保护 </li><li>支持电流报告 </li><li>16引脚和24引脚的 WQFN 封装 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

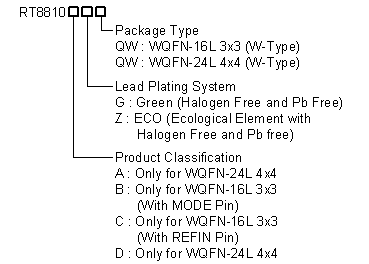

RT8810 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8810
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8810
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>GPU 内核电源 </li><li>台式电脑记忆体 V<sub>TT</sub> 电源 </li><li>低压、高达功率密度 DC/DC 转换器 </li><li>电压调节器模组 </li></ul></div>
