RT8894A是多相PWM控制器，此外符合AMD SVI2 电压调节器规范，可以同时为CPU内核（VDD）和其北桥部分（VDDNB）供电。它采用立锜专有的 G-NAVP (Green-Native AVP) 技术和 CCRCOT（Constant Current Ripple Constant On-Time，固定电流涟波固定导通时间）控制架构，易于设定、控制，可满足 AMD AVP (Adaptive Voltage Positioning) VDD/VDDNB 的所有要求。其压降特性可通过对误差放大器的直流增益进行设定而实现；使用适当的补偿设计，符合 AVP 性能要求的瞬态回应特性也很容易获得。</br>RT8894A使用SVI2介面控制8位元DAC设定输出电压及操作模式，及支援动态平台主，I<SUP>2</SUP>C介面采用先进的配置及监控。RT8894A特色在于具有可程式设计的功率级距于不同操作相数，包含超频偏移、开关频率、负载线及保护设定组合。平台主可根据不同工作脚本，通过I<SUP>2</SUP>C介面优化功率的表现及效能。</br>RT8894A还提供了电源准备好指示信号、过流指示信号以及两种过流保护机制，完善的故障保护功能亦包含其中，如过压保护、欠压保护和负压保护。

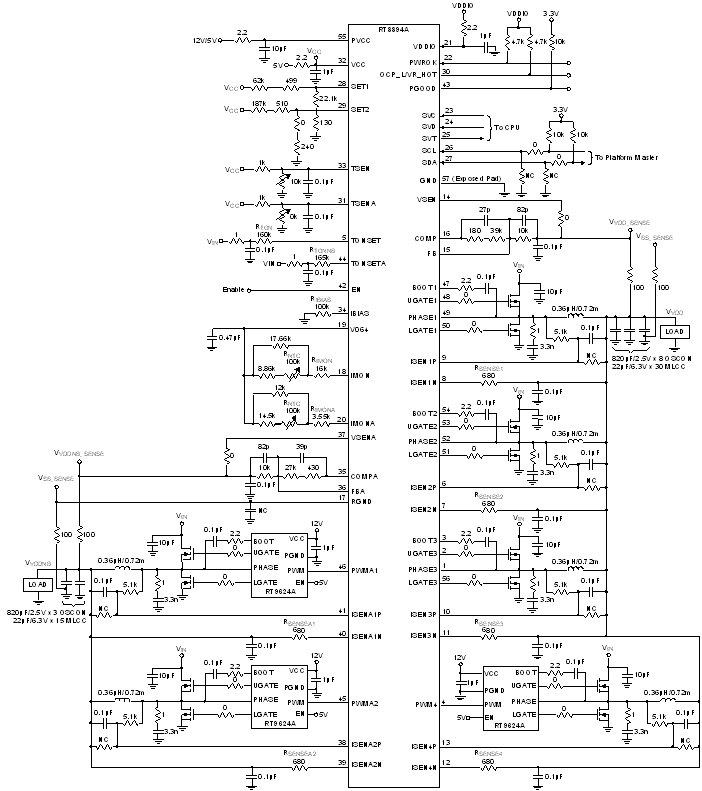

RT8894A 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>双道输出: <ul class="lv2"> <li></li><li>4/3/2/1相 VDD </li><li>2/1/0相 VDDNB </li></ul> </li><li>用于VDD VR的整合3个MOSFET驱动器 </li><li>功率阶段输入用于VDD VR电压范围高达20V </li><li>G-NAVP™架构 </li><li>支援动态负载线和零负载线 </li><li>支援轻载条件下的二极体模拟模式 </li><li>使用 SVI2 介面以支援 AMD 电源管理协定 </li><li>内建 ADC 以支援 V<sub>OUT</sub> 和 I<sub>OUT</sub> 报告机制 </li><li>及时的过压、欠压和负压保护及欠压锁定保护 </li><li>可程式设计的双重过流保护机制 </li><li>准确电流平衡 </li><li>快速瞬态回应 </li><li>动态相高低控制 </li><li>可程式设计的功率级距控制 </li><li>VDD VR 电源准备好指示 </li><li>VDD 和 VDDNB VR热监控 </li><li>56引脚 WQFN 封装 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

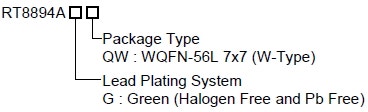

RT8894A 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8894A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8894A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>AMD SVI2 CPU </li><li>桌上型电脑 </li></ul></div>
