RT9119是使用I<SUP>2</SUP>S介面输入的高效身历声音讯功率放大器，可输出2x20W功率驱动8Ω BTL扬声器，电源利用效率高达90%以上，无需使用散热器材。</br>它内建爆裂音抑制功能，可在各种条件下防止扬声器发出爆裂音。内建的保护电路可提供过热保护、过流保护、过压保护、直流和欠压保护等能力，各故障状态均有上报功能。</br>RT9119是I<SUP>2</SUP>S介面上的收端器件，可以接受外来的所有时钟信号。它支援master模式和slave模式，可接受8kHz至96kHz取样率的输入信号。它含有可程式控制的资料路由设计，可将资料导入内部扬声器驱动器使用。</br>RT9119使用三段式动态回应控制设计，具有灵活的多频段双二阶滤波器，可实现防削顶、功率限制和扬声器均衡等功能。

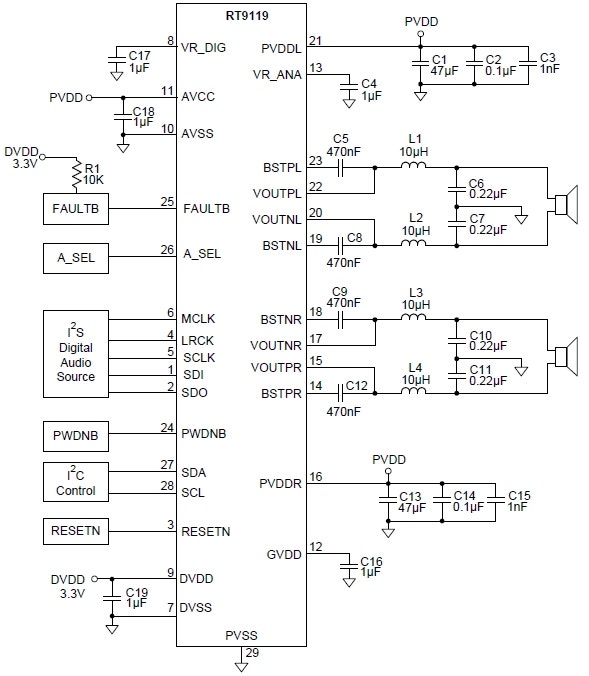

RT9119 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>工作电压范围：8V至26.4V </li><li>20V电源下可推8Ω BTL扬声器2x20W </li><li>12V电源下可推8Ω BTL扬声器2x9W </li><li>支援双声道身历声输出 </li><li>信号取样率8kHz至96kHz </li><li>内建防爆裂音功能 </li><li>36个可程式控制双二阶滤波器供扬声器均衡使用 </li><li>可程式控制动态回应控制滤波器系数，支援多种压缩比例 </li><li>内建直流阻断滤波器 </li><li>具备欠压锁定保护、过压保护、过流保护、过热保护和直流保护等功能 </li><li>无需外加滤波器 </li><li>热强化的VQFN-28L封装 </li><li>符合RoHS规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

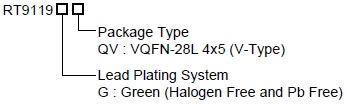

RT9119 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT9119
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT9119
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>液晶电视 </li><li>监视器 </li><li>家用音响 </li><li>娱乐设备 </li><li>电子音乐设备 </li></ul></div>
