RT9120S 是具有 2x30W 8Ω BTL 连接扬声器驱动能力的身历声音讯功率放大器，它采用 I<sup>2</sup>S 输入介面，转换效率高，2x10W 输出效率可达 94%，无需使用散热器。</br>它内建防爆裂音功能，能在各种使用条件下避免扬声器出现爆裂声。它也同时具备过热保护、过流保护、过压保护、欠压保护和错误上报功能。</br>RT9120S 使用的 I<sup>2</sup>S 标准介面采用 3 线连接，支援左对齐、右对齐和 TDM 格式资料，输入信号的取样速率范围为 8kHz-192kHz。</br>RT9120S 内含 DRC 功能，支援灵活的输入混响和功率削顶。

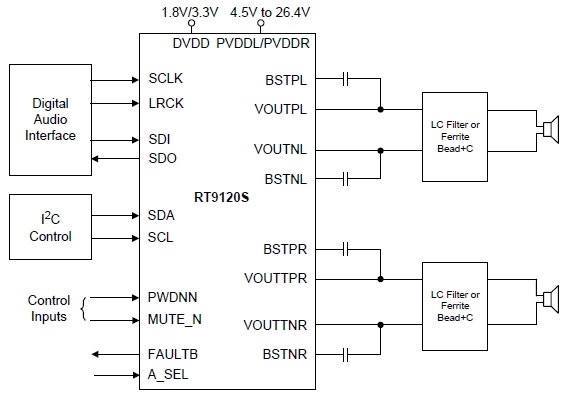

RT9120S 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>输入电压范围：4.5V-26.4V </li><li>支持 1.8V、3.3V 输入、输出接口 </li><li>可设置 4 个独立地址 </li><li>1.0 模式输出功率：1x53W (4Ω, 22V, THD + N = 1%) </li><li>2.0 模式输出功率：2x30W (8Ω, 24V, THD + N = 1%) </li><li>信噪比最高达 113dB </li><li>1W 输出时， THD + N = 0.03% </li><li>基底噪声：35μV </li><li>8Ω 负载、2x10W 输出效率高达 94% </li><li>R<sub>DS(ON)</sub> = 90mΩ </li><li>PWM 工作频率最高达 1.536MHz </li><li>信号采样率：8kHz-192kHz </li><li>支持多通道 TDM 格式数据 </li><li>内建防爆裂音功能 </li><li>DRC 滤波器参数可调 </li><li>内建直流阻断滤波器 </li><li>内建热折返功能 </li><li>欠压闭锁保护、过压保护、过流保护、过热保护和直流保护 </li><li>无需使用电感 </li><li>VQFN-32L 热强化封装 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

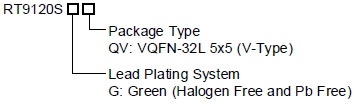

RT9120S 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT9120S
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT9120S
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>液晶电视 </li><li>显示器 </li><li>家用音响 </li><li>娱乐设备 </li><li>电子音乐设备 </li></ul></div>
