RT9206为低单价，整合了PWM电压模式的降压型转换器控制器、两组高压型线性控制器的多组整合型转换器控制器，可直接驱动外部的N-MOSFET简易的实现具高效率与低价位的电源解决方案。电压模式的控制回路以及具备外部补偿网路的固定频率操作，在宽操作范围内提供了更佳的稳定性。可调的操作频率最高达600kHz可减少所需电感大小与PCB的设计面积。可适用于宽输入电压范围(4.75V至 28V)与多组输出的应用。线性控制器的特色为设计自由度高，输出功率的大小可借由所选择的N-MOSFET 决定，输出电压可由外接的电阻分压进行设计。0.8V的参考电压可满足大多数的设计应用。低电压闩锁功能可提供输出有效的保护。RT9206提供完整的保护功能:缓启动、过电流保护、过电压与低电压保护。可借由所选择的MOSFET以决定电流限制的大小。同步降压型控制模式借由开启低端MOSFET以达到过电压保护机制，防止在异常的过电压产生时，毁坏终端装置的情形发生。

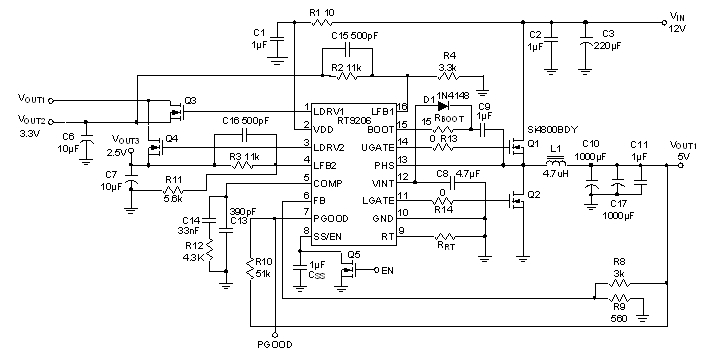

RT9206 电路图
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>宽输入范围(4.75V 至 28V) </li><li>0.8V 内部参考电压 </li><li>高效率的同步降压型架构 </li><li>整合两组高压线性控制器 </li><li>低价位的N-MOSFET 设计 </li><li>责任周期 0% 至90%. </li><li>可调切换频率200kHz至600kHz，预设为 200kHz </li><li>可借由低端MOSFET R<sub>DS(ON)</sub> 感测OCP </li><li>电源良好信号指示 </li><li>符合RoHS规范与100%的引脚无铅特性 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

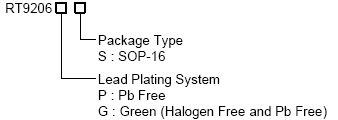

RT9206 订购信息
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT9206
technicalDocumentMultipleTable
design-tools
RT9206
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>LCD Monitor </li><li>Desk Note </li><li>IEEE1394 Client </li><li>Desktop IA </li><li>Broadband </li></ul></div>
