RT9232B 是一款单相同步降压 PWM DC/DC 转换器控制器，专为驱动两颗 N 沟道 MOSFET 而设计。其内建 0.8V ±1% 高精度参考电压，可提供精确可程式化的输出电压，以满足低电压应用需求。 RT9232B 采用外部补偿、单回路回授的电压模式 PWM 控制架构，可提供快速的暂态响应。其振荡器支援 50kHz 至 800kHz 的可程式化开关频率，可减少外部电感与电容尺寸，进而节省 PCB 板空间。 RT9232B 能提供快速的负载暂态响应，以满足高电流输出应用需求（最高可达 25A），同时将外部元件数量降至最低。此产品特别适用于高效能绘图处理器（GPU）、DDR 及 VTT 电源应用。 RT9232B 内建完整保护功能，包括软启动（Soft Start）、输出使能（Output Enable）、欠压锁定保护（UVLO）及过电流保护（OCP），并采用小型 14 脚位封装。

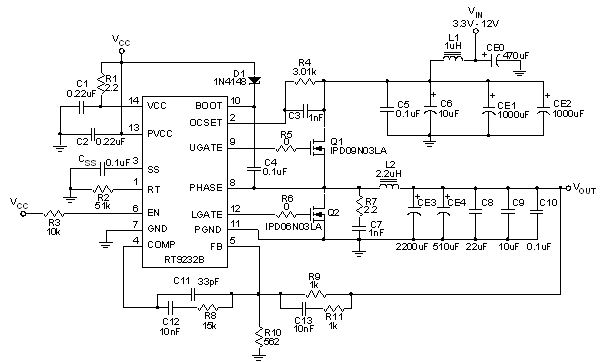

RT9232B 电路图
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Single IC Supply Voltage : 12V </li><li>Single phase DC/DC Buck Converter with <ul class="lv2"> <li></li><li>High Output Current (up to 25A) </li><li>Low Output Voltage (down to 0.8V) </li><li>High Input Voltage (up to 12V) </li></ul> </li><li>Operate from 12V, 5V or 3.3V Input </li><li>0.8V ± 1% Internal Reference </li><li>Adaptive Non-Overlapping Gate Drivers </li><li>Integrated High-Current, HV Gate Drivers </li><li>External Programmable Soft Start </li><li>External Programmable Frequency(Range : 50kHz to 800kHz, 200kHz Free Run) </li><li>Provide Over Current Protection by Sensing MOSFET R<sub>DS(ON)</sub> </li><li>On/Off Control by Enable Pin </li><li>Drives Two N-MOSFET </li><li>Full 0 to 100% Duty Cycle </li><li>Fast Transient Response </li><li>Voltage Mode PWM Control with External Feedback Loop Compensation </li><li>RoHS Compliant and 100% Lead (Pb)-Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

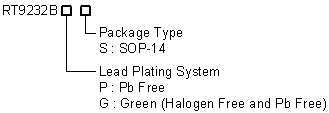

RT9232B 订购信息
