RT9284A/B 是紧凑型的高效、高集成度的 LED 驱动器，内建的 22V 耐压 MOSFET 可支援2~5只串联的 WLED 背光应用和相机闪光灯应用，高度整合的、包含补偿电路在内的设计使得只需最少5只外部元件就可构成完整的应用电路。优选的工作频率使得只需使用小型的 LC 滤波器，低工作电流使得转换效率得到保证，内部软启动电路使得冲击电流最小化。小型的 TSOT-23-5 和 TSOT-23-6 的封装为取得最佳的 PCB 设计提供了低成本的方案。

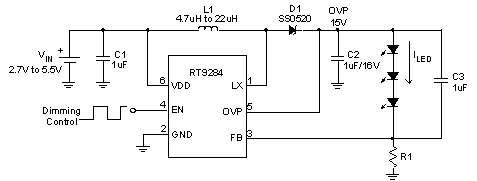

RT9284A-E/RT9284B-E 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>V<sub>IN</sub> 输入电压范围：2.7V~5.5V </li><li>最高输出电压达 20V </li><li>调光时没有冲击电流，调光信号频率范围为 100Hz~100kHz </li><li>过压保护 </li><li>输出电压 V<sub>OUT</sub>=12V时的输出电流可达 100mA </li><li>关机情况下不耗电 </li><li>外部元件极少 </li><li>使用小型 LC 滤波器 </li><li>内置软启动 </li><li>符合 RoHS 规范，完全无铅 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

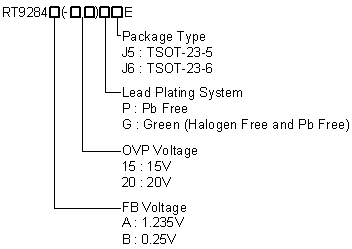

RT9284A-E/RT9284B-E 订购信息
