RT9285C 是集成了续流二极体的高频、非同步 Boost 架构转换器，可用于驱动2~5只串联连接的白光 LED 或是为 OLED 供电。它的内部集成了软启动功能以降低冲击电流，在 1MHz 的固定频率下工作，因而可以使用小型的外部元件，解决 EMI 问题也很简单。IC 的过压保护点设定在 20V，容许使用价格适宜的、较低耐压等级的小型输出电容。LED 电流可用外部电流检测电阻 R<sub>SET</sub> 进行设定，其回馈电压为 250mV 。RT9285C 的封装是小型的 TSOT-23-6 、 2mm x 2mm 的 WDFN-8L 和 XDFN-8L，在使用中可以节省 PCB 空间，保持总成本的最优化。

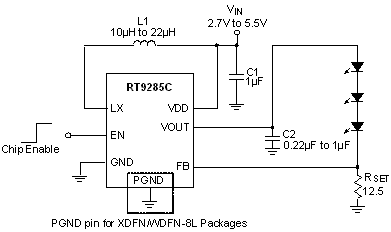

RT9285C 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>V<sub>IN</sub> 工作电压范围： 2.7V~5.5V </li><li>效率高达 85% </li><li>内部功率 MOSFET 耐压为 22V </li><li>1MHz 固定工作频率 </li><li>内部集成了二极体 </li><li>零冲击的数字调光方法 </li><li>输入欠压锁定保护 </li><li>输出过压保护 </li><li>内部集成软起动和补偿电路 </li><li>TSOT-23-6 、 8引脚 WDFN 和 XDFN 封装 </li><li>符合 RoHS 规范的无铅封装 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

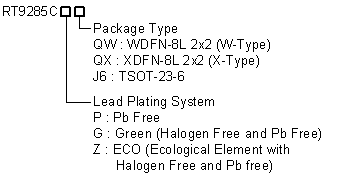

RT9285C 订购信息
