RT9365是高性能的白光LED驱动器，集成有多个恒流源和自动进行模式选择的电荷泵，通过使用x1/x1.5倍的电荷泵和低压差恒流源维持其高效率。它在使用锂离子电池驱动的白光LED应用中利用x1模式的低开环内阻和超低压差电流源的特性并尽可能扩展其工作于此模式下的时间来优化效率表现。</br>RT9365可对最多5只LED进行驱动，并可将流过它们的电流都调整到一致以获得同等的亮度，此电流受到一个4位DAC的控制，用户在EN端上施加一串脉冲信号即可实现其在1.25mA至20mA之间的调整，总共有16级电流参数可供选择。它的工作电压范围为2.8V至5V，有内部软起动电路可以有效减低启动期间和模式切换期间的输入电流冲击。在它停机不运作的时候，负载与V<sub>IN</sub>之间的电流连接是被切断了的，总的电流消耗也下降到低于1μA。</br>RT9365采用WQFN 3x3-16L封装。

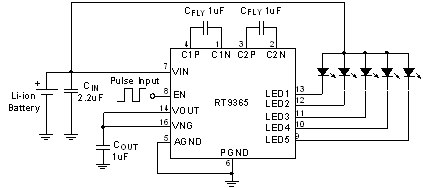

RT9365 电路图
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>全电池电压范围内85%以上的平均效率 </li><li>驱动最多5只LED </li><li>电流源最低压差为80mV (典型值) </li><li>总负载能力为100mA </li><li>LED电流精准度为1% (典型值) </li><li>LED间电流误差为0.7% (典型值) </li><li>含软起动特性 </li><li>自动进行电荷泵模式选择 </li><li>250kHz固定工作频率 </li><li>输出有过压保护 </li><li>16级亮度控制 </li><li>输入杂讯低，EMI问题少 </li><li>停机电流0.3μA </li><li>符合RoHS规范，完全无铅 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

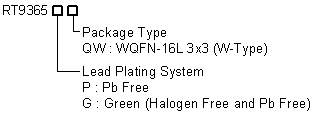

RT9365 订购信息
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT9365
technicalDocumentMultipleTable
design-tools
RT9365
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>行动电话、相机、MP3 </li><li>白光LED背光应用 </li><li>液晶显示器 </li></ul></div>
