RT9516 是适合可擕式应用的全集成、低成本的单节锂离子电池充电 IC ，它可用交流电源转接器和 USB 介面进行供电。当两个输入都不存在时， RT9516 进入睡眠模式。RT9516 采用优化的方式完成充电任务，可自动选择预充模式、快充模式和恒压模式进行充电操作，恒压模式将自动维持以确保电池总是处于充满状态。充电电流可用外部电阻进行调节。内部热回馈电路可对内核温度进行调节，使得它在任何可用工作温度范围内都可以最佳的充电速率进行充电。它的 VIN 端子可以承受最高 28V 的电压，其它特性包括欠压保护、和对交流电源转接器的过压保护。RT9516 还包含了一个启动辅助电路，它对输入电源和电池连接状态进行检测，可在适当状况下输出一个信号 ( ABO ) 以启动系统。RT9516 采用了小型的 WDFN-8L 2x2 封装以满足 PCB 空间和 BOM 成本低的综合要求。

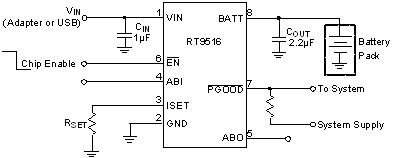

RT9516 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>交流电源转接器输入端最高耐压为 28V </li><li>内部集成 P-MOSFET </li><li>交流电源转接器电源正常指示 </li><li>可设定充电电流 </li><li>自动启动输出信号 </li><li>欠压保护 </li><li>过压保护 </li><li>热回馈优化充电速率 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

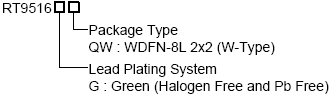

RT9516 订购信息
