RT9624A 是专为一般 MOSFET 驱动的应用和高性能 CPU VR 驱动能力设计的高频、同步整流的单相 MOSFET 驱动器。RT9624A 可提供 4.5V 到 13.2V 的VCC 。适用的功率级VIN范围为 5V 至 24V 。RT9624A 内置一个内部电源开关来代替外部靴带式二极体。RT9624A 开关频率最高可达 500kHz ，且同时具有 UGATE 和 LGATE 的驱动电路，能支援同步整流 DC/DC 转换器的应用。击穿保护 (Shoot Through Protection) 是用来防止上下桥间功率开关的击穿现象。RT9624A 具有三态 PWM 输入、关机和 EN 输入关机功能，可以强制驱动器输出低的 UGATE 和 LGATE 信号。RT9624A 封装为小尺寸 8 引脚封装，封装类型有：SOP- 8、SOP- 8 (裸露焊盘) 和 WDFN-8L 3x3 封装。

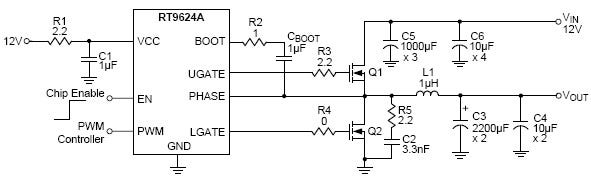

RT9624A 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>可驱动两个 N-MOSFET </li><li>击穿保护 </li><li>内嵌靴带式二极体 </li><li>支援高开关频率 </li><li>快速输出上升时间 </li><li>Tri-State PWM Input for Output Shutdown </li><li>始能控制 (Enable Control) </li><li>SOP-8、SOP-8 (裸露焊盘) 和 8-脚位 WDFN 封装 </li><li>符合 RoHS 标准及不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

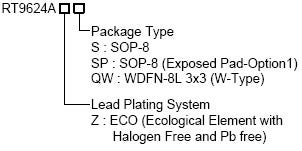

RT9624A 订购信息
