RT9706 为一高性价比、低电压、单 N-MOSFET 的高侧电源开关，适用于自供电 (self-powered) 和汇流排供电 (bus- powered) 的串列汇流排 (USB) 应用。RT9706 内含一个电荷泵电路来驱动内部 MOSFET 开关，开关的 80mΩ低导通电组 (R<sub>DS(ON)</sub>) 符合 USB 的压降要求，且具有一个输出指示信号来表示错误状况给 USB 控制器。其它特点包括插入时的软启动，用来限制涌入电流、过热关断，用来防止开关因高电流负载造成的严重失效、欠压锁定 (UVLO)，确保有有效的输入电压出现前，IC 保持关机。RT9706 提供 SOT-23-5 封装。

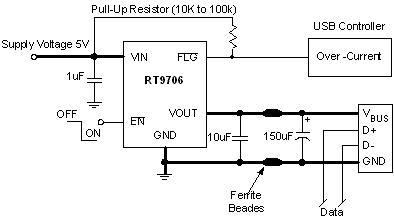

RT9706 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>符合 USB 规范 </li><li>内置 (典型值 80mΩ) N-通道 MOSFET </li><li>输出可以被强制高于输入 (Off-State) </li><li>低电源电流： </li><li>开关打开状态 (Switch On State) 下，典型值 25μA </li><li>开关关闭状态 (Switch Off State) 下，典型值 0.1μA </li><li>保证 500mA 连续负载电流 </li><li>宽输入电压范围： 2V 至 5.5V </li><li>开路汲极错误讯号 (Fault Flag) 输出 </li><li>热插拔应用 (软启动) </li><li>欠压锁定 (UVLO) 典型值 1.7V </li><li>电流限制保护 </li><li>过温保护 </li><li>反向电流阻断 (无二极体) </li><li>SOT-23-5 封装，最小化板子体积 </li><li>UL Approved-E219878<img src="/assets/2011/08/03/02853xnhyd.GIF" alt="" width="42" height="42" align="middle"> </li><li>符合 RoHS 标准及 100% 不含铅 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

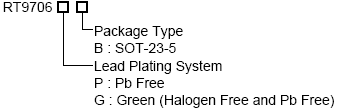

RT9706 订购信息
