RT9829 具有两个联合的延时复位输入(<span class="overline">SR0</span>, <span class="overline">SR1</span>)和一个用户可选的延时时间(t<sub>SRC</sub>，7.5s 或 12.5s)(典型值)设定输入端 DSR。当 DSR 与地相连时，t<sub>SRC</sub> = 7.5s(典型值)；当 DSR 与 V<sub>CC</sub> 相连时， t<sub>SRC</sub> = 12.5s(典型值)。它具有两个输出端，当两个复位输入均有效并且持续时间超过选定的 t<sub>SRC</sub> 时，它们同时进入输出有效状态。输出有效状态将持续至任一个或两个重定输入都进入无效状态时才结束，（因此，输出重定信号的时间是完全由输入信号所决定的，这意味着既没有固定的复位脉冲宽度，也没有最小复位脉冲宽度，就连上电复位脉冲也是没有的。）复位输出 <span class="overline">RST1</span> 是低有效的，是开漏输出；复位输出 RST2 是高有效的，为推挽输出。RT9829 的工作电压范围是 1.65V~5.5V。当 V<sub>CC</sub> 电压低于 1.575V （典型值）时，输入信号被忽略，输出信号被撤销。被撤销后的重定信号电平被降低到低达 1V。RT9829 的封装是小型的 WDFN-8L 2x2 (COL)。

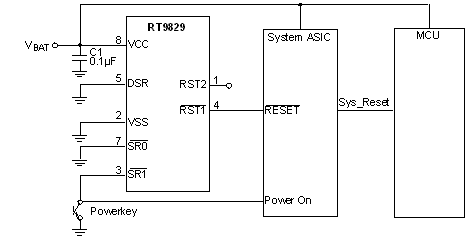

RT9829 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>双复位键控输入端 <ul class="lv2"> <li></li><li>用户可选延迟时间：7.5s 和 12.5s(典型值) </li></ul> </li><li>键控复位脉冲宽度 <ul class="lv2"> <li></li><li>没有固定的或最小的脉冲宽度承诺 </li></ul> </li><li>没有上电复位功能 </li><li>双复位输出 <ul class="lv2"> <li></li><li><span class="overline">RST1</span> : 低有效，开漏输出 </li><li>RST2 : 高有效，推挽输出 </li></ul> </li><li>固定的重定输入逻辑电压电压电平 </li><li>宽工作电压范围： 1.65V~5.5V </li><li>2μA 工作电流 </li><li>工作温度范围： -40°C ~ 85°C </li><li>小型8引脚 WDFN 封装 </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

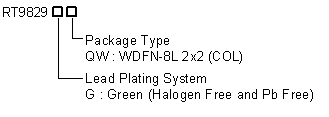

RT9829 订购信息
