RT9999A/B是具有高集成度的电源管理IC，内含7路开关模式DC/DC转换器、1路通用线性稳压器、1路常通低耗电线性稳压器、1个能阻止来自备用电池的反向电流的开关和一个包含定时计数器和32789Hz振荡器的即时时钟电路，其目标应用是数码相机。<BR>内含的DC/DC转换器包括1个工作于非同步PFM模式或同步PWM模式的升压电路、一个电流模式同步升压/降压电路（Buck-Boost）、两个同步降压电路、一个供CCD+使用的包含负载开关的同步升压电路、一个供CCD-使用的非同步反相器和一个工作于同步升压模式或定电流模式的WLED驱动器，这些电路都集成了MOSFET功率开关，补偿网路也已内建 。<BR>RT9999A/B含有I<SUP>2</SUP>C介面，可通过它进行上电时序设定、输出电压设定、WLED电流和调光设定，也可通过它获取RTC计数器资讯、对振荡器进行微调。<BR>RT9999A/B具有完备的保护功能设计，其中包括过流保护、欠压保护、过压保护、过热保护和超载保护。<BR>RT9999A/B使用WQFN-40L 5x5封装。

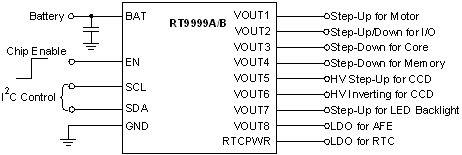

RT9999A/RT9999B 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>CH1：PWM模式同步升压或脉冲频率模式非同步升压 </li><li>CH2：同步升/降压 </li><li>CH3/CH4：最大占空比为100%的同步降压 </li><li>CH5：具有负载断开功能的同步升压电路为CCD+供电 </li><li>CH6：非同步反相器为CCD-供电 </li><li>CH7：同步升压模式或定电流模式WLED驱动器 <ul class="lv2"> <li></li><li>LED开路保护 </li><li>32级调光 </li></ul> </li><li>CH8：通用低电压线性稳压器 </li><li>CH9：常通低静态线性稳压器 </li><li>I<sup>2</sup>C介面用于程式控制 <ul class="lv2"> <li></li><li>使能、上电延时、输出电压调节、WLED电流调节 </li></ul> </li><li>RTC计时器和振荡器 </li><li>CH3/4：2MHz固定工作频率 </li><li>CH1/2/5/6/7：1MHz固定工作频率 </li><li>CH1/3/4/7/8：支援动态电压调节（DVS） </li><li>效率高达95% </li><li>符合RoHS规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

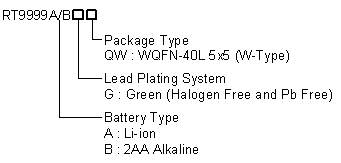

RT9999A/RT9999B 订购信息
