RTQ2106是针对汽车应用开发的高效低耗、电流模式同步Buck转换器，负载能力为3A，可在3V至36V输入电压范围内工作，可抵抗高达42V的抛负载瞬态冲击，使输入端的冲击保护设计得以简化。RTQ2106的可输出电压范围为0.8V至V<SUB>IN</SUB>，静态耗电低，集成了低R<SUB>DS(ON)</SUB>的功率MOSFET，可在很宽的负载范围内获得高效特性。它使用峰值电流控制模式和简洁的内部补偿方式，容许使用小型电感，具有快速的瞬态回应速度和很好的环路稳定性。</br>它具有超低的最短导通时间参数，即使在降压比很高的情形下使用也能保持工作频率稳定不变。对于开关杂讯敏感应用，可在300kHz至2200kHz之间进行外部同步。它内建了扩展频谱调制模式，可说明设计者很好地处理EMC问题。</br>RTQ2106具有完备的保护特性，如输入欠压锁定保护、输出欠压保护、过流保护和过热保护等。它所具有的逐周期过流保护特性可以很好地应对输出短路的情形，还有软起动特性可避免启动期间的输入电流冲击问题。RTQ2106的封装形式为带有外露式焊盘的TSSOP-14。

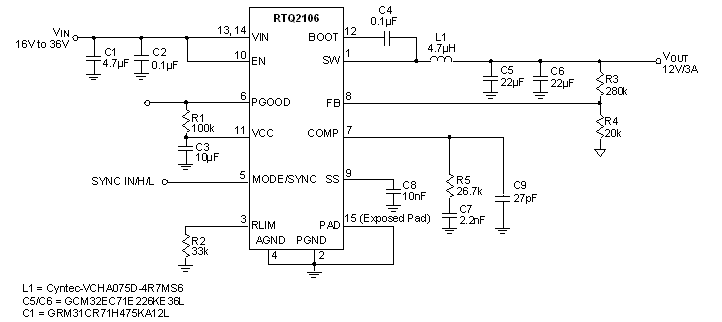

RTQ2106-QA 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>通过AEC-Q100 Grade 1认证 </li><li>宽输入电压范围 <ul class="lv2"> <li></li><li>4V至36V </li><li>3V至36V (软起动结束后) </li></ul> </li><li>宽输出电压范围：0.8V至V<sub>IN</sub> </li><li>最大负载能力：3A </li><li>峰值电流模式控制架构 </li><li>集成90mΩ开关和同步整流器 </li><li>静态耗电40μA </li><li>开关最短导通时间为60ns </li><li>开关最短截止时间为65ns </li><li>可同步切换：300kHz至2.2MHz </li><li>可选轻载PSM/FPWM工作模式 </li><li>内建频谱扩展调制模式，优化EMI表现 </li><li>有Power Good指示功能 </li><li>有使能控制 </li><li>0.8V参考电压精准度为±1.5% </li><li>具备相邻引脚短路保护功能 </li><li>内建欠压锁定保护、过流保护、输出欠压保护和过热保护功能 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

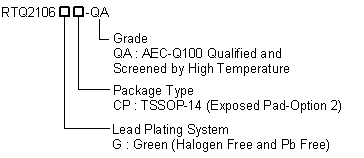

RTQ2106-QA 订购信息
