RTQ5756 系列产品是具备 4 相能力的同步降压转换器，可支持多相与单相运行。这些产品提供广泛的配置选项。RTQ5756A 提供 2+1+1 相三路输出，而 RTQ5756B 提供 1+1+1+1 相四路输出。RTQ5756C 提供 3+1 相双路输出，RTQ5756D 提供 4 相单路输出。最后，RTQ5756E 提供 2+2 相双路输出。此灵活性与高集成度使 RTQ5756 系列适用于各种需要高电流与紧凑电源管理解决方案的应用，例如低功耗处理器、I/O 电源、FPGA 核心电源、DSP 与其他 ASIC。凭借 3V 至 5.5V 的输入电压范围，这些转换器可兼容于各种低电压系统。它们可提供高达 20A 峰值电流，并支持 0.4V 至 1.55V 的输出电压。RTQ5756 系列产品亦提供可编程功能，包括电压电平、电压变化压摆率与软启动压摆率，可通过最高 3.4MHz 运行的 I<sup>2</sup>C 接口进行控制。此外，这些产品支持远端检测功能，以确保重载下的输出电压准确。它们配备中断与故障检测功能，可回报任何错误状态。RTQ5756 系列产品采用 WL-CSP-54B 2.69x3.92 (BSC) 封装。建议结温范围为 −40°C 至 125°C。请参阅订购信息以了解各料号的主要功能。
3

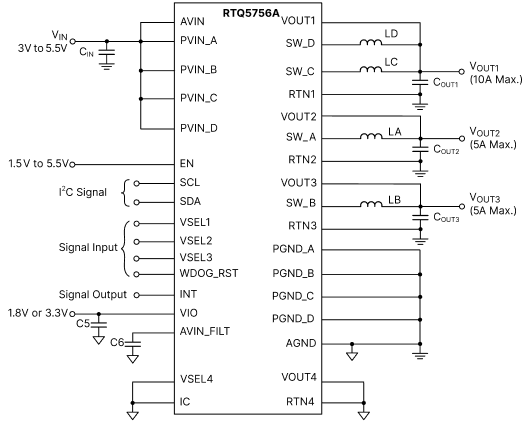

RTQ5756 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>High Accuracy Current Sensing </li><li>3.5% Maximum Error Over-Temperature </li><li>2.9V to 18V Power-Supply Range </li><li>Two Gain Options Available - RTQ6050 = 20V/V - RTQ6052 = 100V/V </li><li>Common-Mode Range: 2V to 80V </li><li>0.6V Internal Voltage Reference </li><li>Internal Open-Drain Comparator </li><li>Latching Capability on Comparator </li><li>Package: MSOP-8 and SOP-8 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
3

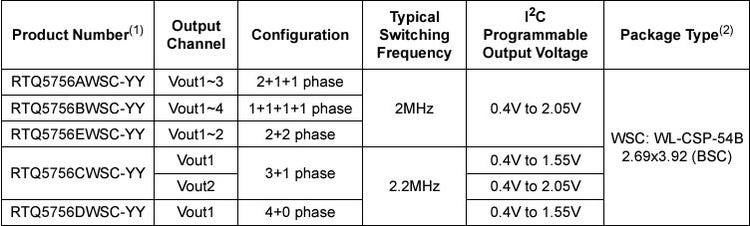

RTQ5756 订购信息
