1. Purpose

<p class="MsoNormal">The RT1710S is a type-C E-marked IC. It can request cable current ,speed limit and cable type. This document explains the function and use of the RT1710S evaluation board (EVB).</p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT1710S is a Type-C cable ID for active and passive cables.All USB Full-Featured Type-C cables shall be electronically marked. Electronically marked cables shall support USB Power Delivery Structured VDM Discover Identity command directed to SOP'. This provides a method to determine the characteristics of the cable, e.g. its current carrying capability, its performance, vendor identification, etc. This may be referred to as the USB Type-C Cable ID function. RT1710S is available in a WDFN-8L 2x2 package.</p> <h3>Product Feature</h3> <ul> <li> Support SOP' and SOP” Communication </li> <li> Integrated Transceiver (BMC PHY) </li> <li> Embedded RA Resistor </li> <li> Embedded ISO Diode </li> <li> Embedded MTP </li> <li> Support Multi-Time Writable Memory to Store VDM Data </li> <li> Support 4V to 5.5V Operation on VCON1 / VCON2 Pin </li> <li> Built-In Slew Rate Control for BMC Signal to Reduce the Effect of EMI </li> <li> Support Custom Structured VDM Writing Through CCIN Pin </li> <li> Support I²C Bus for Programming VDM Data </li> </ul>

3. Key Performance Summary Table

<table width="99%" class="MsoTableLightListAccent2" style="border: currentColor; width: 99.96%; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation Board Number: PCB076_V1</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Input Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">5V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">RT1710SGQW, WDFN-8L 2x2</p> </td> </tr> </tbody> </table>

4. Bench Test Setup Conditions

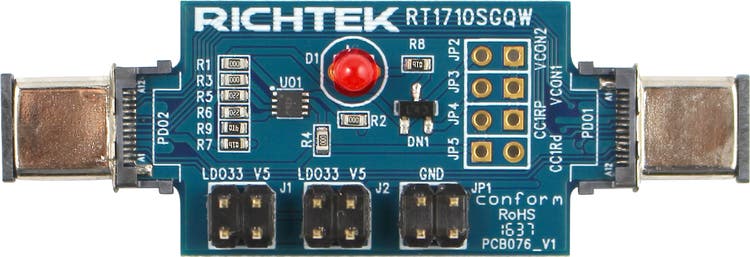

<h3>Headers Description and Placement</h3> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image001_en.png" class="fancybox"><img width="690" height="236" width="690" height="236" id="圖片 2" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image001_en.png" /></a></p> <p class="2">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p>

5. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table width="850" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 1cm;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 14.5%; height: 1cm;"> <p class="23CxSpFirst">Test point/</p> <p class="23CxSpMiddle">Pin name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 17.18%; height: 1cm;"> <p class="23CxSpMiddle">Signal</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 68.32%; height: 1cm;"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 14.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VCON1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 17.18%; height: 17pt;"> <p class="ListParagraph1CxSpLast">VCONN1 pin</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 68.32%; height: 17pt;"> <p class="MsoNormal">This pin is E-marked power pin. If it is no power, you can measure 1kΩ.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 14.5%; height: 17pt;"> <p class="ListParagraph1">VCON2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 17.18%; height: 17pt;"> <p class="MsoNormal">VCONN2 pin</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 68.32%; height: 17pt;"> <p class="MsoNormal">This pin is E-marked power pin. If it is no power, you can measure 1kΩ.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 14.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 17.18%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 68.32%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground.</p> </td> </tr> </tbody> </table>

6. Write and read e-marked

<p class="MsoNormal">RT1710S can write and read to use E-marked writer board (This is other EVB).</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image002_en.jpg" class="fancybox"><img width="850" height="518" width="850" height="518" id="圖片 5" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image002_en.jpg" /></a></p>

7. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <h3><a name="_Toc409666847"></a><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image003_en.png" class="fancybox"><img width="850" height="557" width="850" height="557" id="圖片 10" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image003_en.png" /></a></h3>

8. Bill of Materials

<table width="851" class="MsoNormalTable" style="border: currentColor; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 16.2pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 66.95pt; height: 16.2pt;"> <p class="MsoNormal">Reference</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.9pt; height: 16.2pt;"> <p class="MsoNormal">Qty</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 116.9pt; height: 16.2pt;"> <p class="MsoNormal">Part number</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 117.55pt; height: 16.2pt;"> <p class="MsoNormal">Description</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 119.5pt; height: 16.2pt;"> <p class="MsoNormal">Package</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.5pt; height: 16.2pt;"> <p class="MsoNormal">Manufacture</p> </td> </tr> <tr style="height: 15.6pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 66.95pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">U01</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 116.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">RT1710SGQW</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 117.55pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">Cable ID for type-C cables</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 119.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">WDFN2x2-8</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">Richtek</p> </td> </tr> <tr style="height: 15.6pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 66.95pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">DN1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 116.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">BAT54C</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 117.55pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">BAT54C</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 119.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">SOT-23_132</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">PANJIT</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 66.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">PD01, PD02</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 116.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">USBTYPE-C_22P_PLUG</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 117.55pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">USBTYPE-C</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 119.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">USBTYPE-C_22P_PLUG</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">JEM</p> </td> </tr> <tr style="height: 15.6pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 66.95pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">R1, R2, R3, R4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 116.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">WR06X000 PTL</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 117.55pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">0/0603/±1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 119.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 15.6pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 66.95pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">R5, R6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 116.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">WR06X22R0FTL</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 117.55pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">22/0603/±1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 119.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 15.6pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 66.95pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">R7, R8, R9</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 116.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">WR06X1001FTL</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 117.55pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">1K/0603/±1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 119.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 15.6pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 66.95pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">D1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 116.9pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">LNL-302RD000A1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 117.55pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">Red LED</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 119.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">RED LED DIP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.5pt; height: 15.6pt; white-space: nowrap;"> <p class="MsoNormal">光楠</p> </td> </tr> </tbody> </table>

9. PCB Layout

<p class="23CxSpFirst"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image004_en.jpg" class="fancybox"><img width="658" height="236" width="658" height="236" id="圖片 9" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image004_en.jpg" /></a></p> <p class="23CxSpMiddle">Top View</p> <p class="23CxSpMiddle"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image005_en.jpg" class="fancybox"><img width="508" height="236" width="508" height="236" id="圖片 3" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1710sgqw/html-images/image005_en.jpg" /></a></p> <p class="23CxSpLast">Bottom View</p>
