1. Purpose

<p class="MsoNormal">The RT2613A is a synchronous step-down converter with the input voltage range from 2.95V to 6V and provides 3A output current. This document explains the function and use of the RT2613A evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.</p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT2613A is a high efficiency step-down converter and capable of delivering 3A output current over a wide input voltage range from 2.95V to 6V. The RT2613A provides accurate regulation for a variety of loads with ±3% accuracy. For reducing inductor size, it provides up to 2MHz switching frequency. The efficiency is maximized through the integrated 45mΩ MOSFETs and 550μA typical supply current. Under voltage lockout voltage of the RT2613A is 2.7V, and it also provides external setting by a resistor network on the enable pin. The RT2613A provides protections such as inductor current limit under voltage lockout and thermal shutdown. The over temperature threshold is 145°C. The RT2613A is available in WQFN-16L 3x3 package.</p>

3. Product Feature

<ul> <li> Integrated 45mΩ MOSFETs </li> <li> Input Range : 2.95V to 6V </li> <li> Adjustable PWM Frequency : 700kHz to 2MHz </li> <li> Output Current : 3A </li> <li> 95% Efficiency </li> <li> Adjustable Soft-Start </li> <li> Power Good Indicator </li> <li> Enable Control </li> <li> Under Voltage Lockout </li> <li> Current Limit </li> <li> Thermal Shutdown </li> </ul>

4. Key Performance Summary Table

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation Board Number : PCB038_V1</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Input Voltage Range</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">2.95V to 6V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">3A</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">1.8V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">RT2613AGQW, WQFN-16L 3x3</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Operation Frequency</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Adjustable from 700kHz to 2MHz</p> </td> </tr> </tbody> </table> </div>

5. Bench Test Setup Conditions

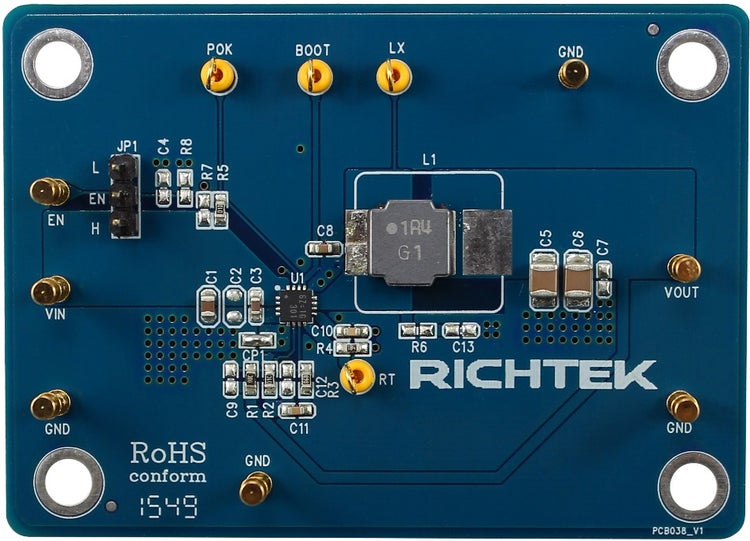

<h3>Headers Description and Placement </h3> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image001_en.jpg" class="fancybox"><img width="416" height="300" width="416" height="300" id="圖片 5" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image001_en.jpg" /></a></p> <p class="2">Please carefully inspect the EVB IC and external components, comparing them to the following Bill of Materials, to ensure that all components are installed and undamaged. If any components are missing or damaged during transportation, please contact the distributor or send e-mail to <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a></p>

6. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 1cm;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 12.5%; height: 1cm;"> <p class="23CxSpFirst">Test point/</p> <p class="23CxSpMiddle">Pin name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 1cm;"> <p class="23CxSpMiddle">Signal</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 1cm;"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Input voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Power input.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 1cm;"> <p class="ListParagraph1">EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 1cm;"> <p class="MsoNormal">Enable test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 1cm;"> <p class="ListParagraph1">Externally pulled high to enable and pulled low to disable this chip. It is internally pulled up to high when the pin is floating.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 1cm;"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 1cm;"> <p class="ListParagraph1CxSpLast">The exposed pad must be soldered to a large PCB and connected to GND for maximum power dissipation.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">AGND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Analog ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Analog ground.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">COMP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Compensation node test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Compensation node for converter stability.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">FB</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Feedback voltage input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Feedback input.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1">PGOOD</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 17pt;"> <p class="MsoNormal">Power good test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 17pt;"> <p class="ListParagraph1">Output of power good indicator.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 1cm;"> <p class="ListParagraph1">BOOT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 1cm;"> <p class="MsoNormal">Bootstrap supply test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 1cm;"> <p class="ListParagraph1">Bootstrap supply for high-side gate driver. Connect a capacitor between the BOOT and LX pins.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1">LX</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 17pt;"> <p class="MsoNormal">Switch node test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 17pt;"> <p class="ListParagraph1">Connect this pin to an external L-C filter.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1">RT/SYNC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 29.12%; height: 17pt;"> <p class="MsoNormal">Clock input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 58.38%; height: 17pt;"> <p class="MsoNormal">Frequency Setting and External Synchronous.</p> </td> </tr> </tbody> </table> </div>

7. Power-up & Measurement Procedure

<p class="MsoListParagraph">1. Apply a 12V nominal input power supply (2.95V < V_IN < 6V) to the VIN and GND terminals.</p> <p class="MsoListParagraph">2. Set the jumper at JP1 to connect terminals 1 and 2, connecting EN to enable operation.</p> <p class="MsoListParagraph">3. Verify the output voltage (approximately 1.8V) between VOUT and GND.</p> <p class="MsoListParagraph">4. Connect an external load up to 3A to the VOUT and GND terminals and verify the output voltage and current.</p>

8. Output Voltage Setting

<p class="MsoNormal">Set the output voltage with the resistive divider (R1, R2) between VOUT and GND with the midpoint connected to FB. The output is set by the following formula :</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image003_en.png" class="fancybox"><img width="152" height="36" width="152" height="36" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image003_en.png" /></a></p>

9. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image004_en.jpg" class="fancybox"><img width="585" height="394" width="585" height="394" id="圖片 3" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image004_en.jpg" /></a></p>

10. Bill of Materials

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 20.86%; height: 17pt;"> <p class="MsoNormal">Reference</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">Qty</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">Part Number</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">Description</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">Package</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">Manufacture</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">U1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">RT2613AGQW</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">DC/DC Converter</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">WQFN-16L 3x3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">C1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">C2012X5R1C106KT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">10µF/16V/X5R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">C-0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">C3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">C1608X5R1E105KT000E</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">1µF/25V/X5R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">C5, C6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">GRM32ER61C226KE20L</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">22µF/16V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">C-1210</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">MURATA</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">C8</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">C1608X7R1H104KT000N</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">0.1µF/50V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">C10</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">0603B103K500</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">10nF/50V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">C11</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">0603B332K500</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">3.3nF/50V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">L1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> <p class="MsoNormal">NR8040T1R4N</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">1.4µH/7A</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">8 x 8 x 4 mm</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> <p class="MsoNormal">Taiyo Yuden</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">R1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">11.8k</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">R-0603 </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">R2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">10k</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">R3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">7.68k</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">R4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">180k</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">R5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">100k</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 1cm;"> <p class="MsoNormal">C2, C4, C7, C9, C12, C13, R6, R7, R8</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 1cm;"> <p class="MsoNormal">9</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 1cm;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 1cm;"> <p class="MsoNormal">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 1cm;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 1cm;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 20.86%; height: 17pt;"> <p class="MsoNormal">CP1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.54%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 25.02%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 18.04%; height: 17pt;"> <p class="MsoNormal">0</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.68%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.86%; height: 17pt;"> </td> </tr> </tbody> </table> </div>

11. PCB Layout

<p class="23CxSpFirst"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image005_en.jpg" class="fancybox"><img width="453" height="326" width="453" height="326" id="圖片 1" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image005_en.jpg" /></a></p> <p class="23CxSpMiddle">Top View (1^st layer)</p> <p class="23CxSpMiddle"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image006_en.jpg" class="fancybox"><img width="453" height="326" width="453" height="326" id="圖片 4" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2613agqw/html-images/image006_en.jpg" /></a></p> <p class="23CxSpLast">Bottom View (4^th Layer)</p>
