1. Purpose

<p class="MsoNormal">The RT2875B is a high efficiency, current-mode synchronous DC/DC step-down converter that can deliver up to 3A output current over a wide input voltage range from 4.5V to 36V. his document explains the function and use of the RT2875B evaluation board (EVB) and provides information to enable operation and modification of the evaluation board and circuit to suit individual requirements.</p>

2. Introduction

<h3>General Product Description</h3> <p class="bady">The RT2875B is a high efficiency, current-mode synchronous DC/DC step-down converter that can deliver up to 3A output current over a wide input voltage range from 4.5V to 36V. The device integrates 95mΩ high-side and 70mΩ low-side MOSFETs to achieve high conversion efficiency. The current-mode control architecture supports fast transient response and simple external compensation. A cycle-by-cycle current limit function provides protection. against shorted output and an external soft-start eliminates input current surge during start-up. The RT2875B provides complete protection functions such as input under-voltage lockout, output under-voltage protection, over-current protection and thermal shutdown.The RT2875B is available in the thermal enhanced TSSOP-14 (Exposed Pad) package.</p> <p class="bady">The RT2875B provides Hiccup Mode Under Voltage Protection (UVP). When the V_FB voltage drops below 0.3V, the UVP function will be triggered to shut down switching operation. If the UVP condition remains for a period, the RT2875B will retry automatically. When the UVP condition is removed, the converter will resume operation. The UVP is disabled during soft-start period. </p>

3. Product Features

<ul> <li> 3A Output Current </li> <li> Internal N-MOSFETs </li> <li> Current Mode Control </li> <li> Adjustable Switching Frequency : 300kHz to 2.1MHz </li> <li> Adjustable Current Limit : 1.5A to 6A </li> <li> Synchronous to External Clock : 300kHz to 2.1MHz </li> <li> Adjustable Output Voltage from 0.6V to 24V </li> <li> High Efficiency Up to 95% </li> <li> Stable with Low ESR Ceramic Output Capacitors </li> <li> Cycle-by-Cycle Current Limit </li> <li> Input Under-Voltage Lockout </li> <li> Output Under-Voltage Protection </li> <li> Thermal Shutdown </li> <li> RoHS Compliant and Halogen Free </li> </ul>

4. Application

<ul> <li> Point of Load Regulator in Distributed Power Systems </li> <li> Digital Set Top Boxes </li> <li> Broadband Communications </li> </ul>

5. Key Performance Summary Table

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 34.16%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.84%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation Board Number : PCB013_V1</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.16%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Input Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.84%; height: 17pt;"> <p class="ListParagraph1CxSpLast">12V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.16%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.84%; height: 17pt;"> <p class="ListParagraph1CxSpLast">3A</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.16%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.84%; height: 17pt;"> <p class="ListParagraph1CxSpLast">3.3V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.16%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.84%; height: 17pt;"> <p class="ListParagraph1CxSpLast">RT2875BQGCP, TSSOP-14 (Exposed Pad)</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.16%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">Operation Frequency</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.84%; height: 1cm;"> <p class="ListParagraph1CxSpLast">300kHz to 2.1MHz (Adjusted by RT Value, Defult RT = 100k, <br /> Frequency = 500kHz)</p> </td> </tr> </tbody> </table> </div>

6. Bench Test Setup Conditions

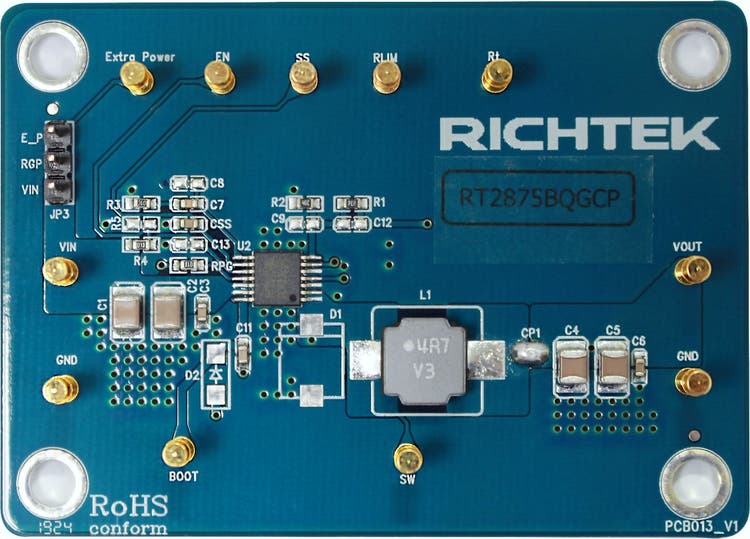

<h3>Headers Description and Placement </h3> <p class="MsoNormal"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG2875BQGCP/EN/Version1/image001.jpg" class="fancybox"><img width="414" height="299" width="414" height="299" id="圖片 4" style="width: 414px; height: 299px;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image001_en.jpg" /></a></p> <p class="2">Please carefully inspect the EVB IC and external components, comparing them to the following Bill of Materials, to ensure that all components are installed and undamaged. If any components are missing or damaged during transportation, please contact the distributor or send e-mail to <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a></p>

7. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 1cm;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 13.9%; height: 1cm;"> <p class="23CxSpFirst">Test point/</p> <p class="23CxSpMiddle">Pin name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 1cm;"> <p class="23CxSpMiddle">Signal</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 1cm;"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">SW</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Switch Node</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Connect to external L-C filter.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">PGND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 1cm;"> <p class="ListParagraph1CxSpLast">Power Ground </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 1cm;"> <p class="MsoNormal">Ground. The exposed pad must be soldered to a large PCB and connected to PGND for maximum power dissipation. </p> </td> </tr> <tr style="height: 51pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 51pt;"> <p class="ListParagraph1CxSpFirst">RT/SYNC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 51pt;"> <p class="ListParagraph1CxSpLast">Oscillator Resistor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 51pt;"> <p class="MsoNormal">Oscillator Resistor and External Frequency Synchronization Input. Must connect a resistor from this pin to GND to set the switching frequency. If SYNC clock is requested, connect an external clock to change the switching frequency.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">AGND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Analog Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">RLIM</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Current Limit Setting</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 17pt;"> <p class="MsoNormal">Connect a resistor from this pin to GND to set the current limit value.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">FB</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 1cm;"> <p class="ListParagraph1CxSpLast">Feedback Voltage Input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 1cm;"> <p class="MsoNormal">The pin is used to set the output voltage of the converter to regulate to the desired via a resistive divider. Feedback reference = 0.6V.</p> </td> </tr> <tr style="height: 39.7pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 39.7pt;"> <p class="ListParagraph1CxSpFirst">COMP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 39.7pt;"> <p class="ListParagraph1CxSpLast">Compensation Node.</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 39.7pt;"> <p class="MsoNormal">COMP is used to compensate the regulation control loop. Connect a series RC network from COMP to GND. In some cases, an additional capacitor from COMP to GND is required.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">SS</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Soft-Start Time Setting.</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 17pt;"> <p class="MsoNormal">Connect a capacitor from SS to GND to set the soft-start period.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Enable</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 17pt;"> <p class="MsoNormal">Enable Control Input. High = Enable.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">PGOOD</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Power Good Output.</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Power Good Indicator Output.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Input Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Input voltage range = 4.5V to 36V.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">BOOT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.6%; height: 1cm;"> <p class="ListParagraph1CxSpLast">Boot</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.5%; height: 1cm;"> <p class="MsoNormal">Bootstrap Supply for High-Side Gate Driver. Connect a 0.1µF ceramic capacitor between the BOOT and SW pins.</p> </td> </tr> </tbody> </table> </div>

8. Power-up & Measurement Procedure

<p class="MsoListParagraph">1. Connect input power (4.5V< V_IN < 36V) and input ground to VIN and GND pins respectively.</p> <p class="MsoListParagraph">2. Connect positive end and negative end of load to VOUT and GND of output pins respectively.</p> <p class="MsoListParagraph">3. The output voltage of (V_OUT) can be set by R1 and R2.</p> <p class="MsoListParagraph">V_OUT = V_REF * (1 + R1 / R2)</p> <p class="MsoListParagraph">where V_REF = 0.6V (typ.)</p>

9. Specification

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 192.2pt; height: 17pt;"> <p class="TableTitleDS">Parameter</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="TableTitleDS">Symbol</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="TableTitleDS">Min</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="TableTitleDS">Typ.</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="TableTitleDS">Max</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="TableTitleDS">Units</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 192.2pt; height: 17pt;"> <p class="Tablebadyright">Input Voltage Range</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">V_IN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">4.5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">36</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 192.2pt; height: 17pt;"> <p class="Tablebadyright">Oscillator Frequency</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">f_OSC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">300</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">2100</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">kHz</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 192.2pt; height: 17pt;"> <p class="Tablebadyright">Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">I_OUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">A</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 192.2pt; height: 17pt;"> <p class="Tablebadyright">EN Input Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">V_EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">1.4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">1.5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">1.6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.6pt; height: 17pt;"> <p class="Tablebadycenter">V</p> </td> </tr> </tbody> </table> </div>

10. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <p class="a5"><i><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image002_en.jpg" class="fancybox"><img width="680" height="339" width="680" height="339" id="圖片 2" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image002_en.jpg" /></a></i></p>

11. Bill of Materials

<table width="0" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; margin-left: 4pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Reference</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Q'ty</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Part Number</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Description</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Package</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Manufacture</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">U2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RT2875BQGCP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">Step-down Converter</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">PTSSOP-14</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RICHTEK</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadyright">Css, C3, <br /> C6, C11</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadycenter">4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadyright">C1608X7R1H104KT000N</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadyright">0.1μF/50V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadyright">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadyright">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C1, C2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">GRM32ER71H106KA12</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">10μF/50V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C-1210</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">Murata</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C4, C5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">GRM32ER61C226KE20L</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">22μF/16V/X5R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C-1210</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">MURATA</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C7</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">0603B333K500</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">3.3nF/50V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">WALSIN</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadyright">R5, C8, C9, C12, C13</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadycenter">5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 1cm; white-space: nowrap;"></td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadyright">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 1cm; white-space: nowrap;"> <p class="Tablebadyright">C/R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 1cm; white-space: nowrap;"></td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">D1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">0</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"></td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">D2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">0</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"></td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;" rowspan="2"> <p class="Tablebadyright">L1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;" rowspan="2"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">NR8040T4R7N</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">4.7μH</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">8040</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TAIYO YUDEN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">744 771 404 7</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">4.7μH/7A</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">WE</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RT, R4, RPG</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"></td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">100K</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RLIM</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"></td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">33k</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">115K</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">25.5K</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 77.7pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 32.2pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 137.6pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 111.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">10K</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 74.55pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 83.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> </tbody> </table>

12. PCB Layout

<p class="23CxSpFirst"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image003_en.jpg" class="fancybox"><img width="491" height="353" width="491" height="353" id="圖片 9" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image003_en.jpg" /></a></p> <p class="23CxSpLast">Top View (1^st layer)</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image004_en.jpg" class="fancybox"><img width="491" height="353" width="491" height="353" id="圖片 5" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image004_en.jpg" /></a></p> <p class="10">PCB Layout—Inner Side (2^nd Layer)</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image005_en.jpg" class="fancybox"><img width="491" height="353" width="491" height="353" id="圖片 6" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image005_en.jpg" /></a></p> <p class="10">PCB Layout—Inner Side (3^rd Layer)</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image006_en.jpg" class="fancybox"><img width="491" height="352" width="491" height="352" id="圖片 7" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image006_en.jpg" /></a></p> <p class="23">Bottom View (4^th Layer)</p>

13. Step-Down Converter Efficiency Test

<p class="a5"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image007_en.jpg" class="fancybox"><img width="477" height="378" width="477" height="378" id="圖片 1" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2875bqgcp/html-images/image007_en.jpg" /></a></p>
