overview

1. Purpose

<p class="MsoNormal">The RT4533A is a highly integrated LED driver IC capable of driving 10 WLEDs in series. It is composed of a current mode Boost converter integrated with a 36.5V/1.2A power switch. For brightness dimming, the RT4533A supports PWM dimming which determines the feedback reference voltage.</p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT4533A is a highly integrated LED driver IC capable of driving 10 WLEDs in series. It is composed of a current mode Boost converter integrated with a 36.5V/1.2A power switch. The RT4533A supports a wide input voltage range from 2.5V to 5.5V and runs at a fixed frequency of 1.1MHz. The LED current is set via an external resistor and the feedback voltage is regulated to 300mV. For brightness dimming, the RT4533A supports PWM dimming which determines the feedback reference voltage.</p>

3. Product Features

<ul> <li> 2.5V to 5.5V Input Voltage Range </li> <li> 36.5V Open LED Protection for 10 WLEDs </li> <li> PWM Dimming Brightness Control </li> <li> 300mV Reference Voltage with ±2% Accuracy </li> <li> 1.1MHz Switching Frequency </li> <li> Built-In Soft-Start </li> <li> Over-Temperature Protection </li> <li> Internal Compensation </li> <li> Current Limit </li> <li> RoHS Compliant and Halogen Free </li> </ul>

4. Key Performance Summary Table

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation Board Number : PCB072_V1</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Input Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">2.5V to 5.5V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">20mA</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">36.5V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">RT4533AGJ6, TSOT-23-6</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Operation Frequency</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Steady 1.1MHz at all loads</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Protection</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">UVLO, OVP, OCP, Thermal Shutdown</p> </td> </tr> </tbody> </table> </div>

5. Bench Test Setup Conditions

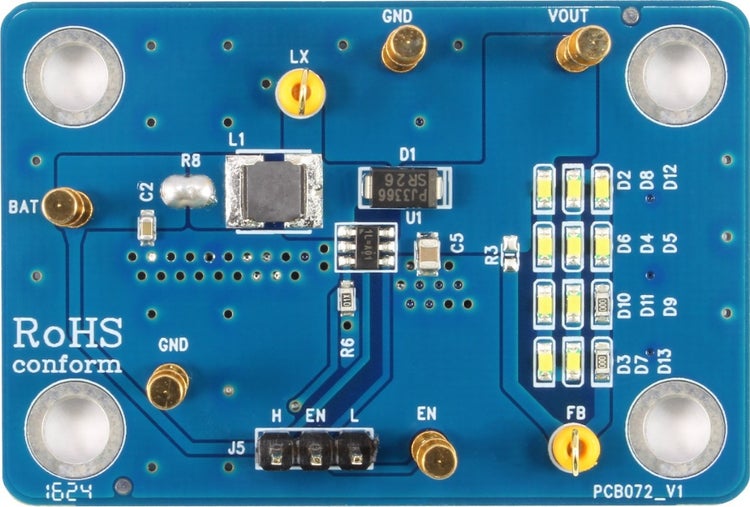

<h3>Headers Description and Placement</h3> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4533agj6/html-images/image001_en.jpg" class="fancybox"><img width="491" height="332" width="491" height="332" id="圖片 3" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4533agj6/html-images/image001_en.jpg" /></a></p> <p class="2">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p>

6. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 1cm;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 12.5%; height: 1cm;"> <p class="10CxSpFirst">Test Point/</p> <p class="10CxSpMiddle">Pin Name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.62%; height: 1cm;"> <p class="10CxSpMiddle">Signal Name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 1cm;"> <p class="10CxSpLast">Description</p> </td> </tr> <tr style="height: 39.7pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 39.7pt;"> <p class="ListParagraph1CxSpFirst">LX</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.62%; height: 39.7pt;"> <p class="ListParagraph1CxSpLast">Switch Node</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 39.7pt;"> <p class="MsoNormal">This is the switching node of the IC. Connect the switched side of the inductor to LX. This pin is also used to sense the output voltage for open LED protection.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.62%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="MsoNormal">Ground.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">FB</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.62%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Feedback Voltage Input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="MsoNormal">Connect the sense resistor from FB to GND.</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.62%; height: 1cm;"> <p class="ListParagraph1CxSpMiddle">Enable Control Input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 1cm;"> <p class="ListParagraph1CxSpLast">Control pin of the boost converter. It is a multifunctional pin which can be used for enable control and PWM dimming.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VOUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.62%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="MsoNormal">The output supply pin for the IC.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 12.5%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.62%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Supply Voltage Input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="ListParagraph1CxSpLast">The input supply pin for the IC. Support 2.5V to 5.5V Input Voltage. </p> </td> </tr> </tbody> </table> </div>

7. Power-Up & Measurement Procedure

<p class="MsoListParagraph">1. Apply 3.6V nominal input power supply (2.5V < V_IN < 5.5V) to the VIN and GND terminals.</p> <p class="MsoListParagraph">2. The EN voltage is pulled to logic high by internal circuit to enable operation. Drive EN high (>1.05V) to enable operation or low (<0.4V) to disable operation. Pull EN pin to High pin that make EN voltage equal to VIN.</p> <p class="MsoListParagraph">3. There is a 2-pin header JP2 “EN” for enable control. To use a jumper at “H” option to tie EN test pin to input power VIN for enabling the device. Inversely, to use a jumper at “L” option to tie EN test pin and ground GND for disabling the device.</p> <p class="MsoListParagraph">4. The JP5 is the PWM control pin.</p> <p class="MsoListParagraph">5. The I_LED setting supports PWM dimming as below.</p>

8. Output ILED Setting

<p class="MsoListParagraph">1. PWM Brightness Dimming</p> <p class="MsoNormal">The EN pin is used for the control input for both PWM dimming mode and digital dimming mode. Shutdown delay when the EN voltage is logic low for more than specific time, the driver will be shut down.</p> <p class="MsoListParagraph">2. OCP</p> <p class="MsoNormal">The driver provides cycle-by-cycle current limit function to control the current on power switch. The boost switch turns off when the inductor current reaches this current threshold and it remains off until the beginning of the next switching cycle. This protects the RT4533A and external component under overload conditions.</p> <p class="MsoListParagraph">3. OVP</p> <p class="MsoNormal">The Over Voltage Protection is detected by a resistor divider circuit from VOUT. Once VOUT goes over the OVP voltage, LX pin stops switching and the power N-MOSFET will be turned off. Then, the VOUT will be discharged by external resistor. OVP will be released until EN goes from Lo to Hi again.</p> <p class="MsoListParagraph">4. OTP</p> <p class="MsoNormal">As the die temperature is higher than 160°C, the chip also will enter protection mode. The power MOSFET will be turned off during protection mode to prevent abnormal operation. The device is released from shutdown automatically when the junction temperature decreases by 15°C.</p>

9. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <p class="21"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4533agj6/html-images/image002_en.jpg" class="fancybox"><img width="680" height="295" width="680" height="295" id="圖片 5" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4533agj6/html-images/image002_en.jpg" /></a></p>

10. Bill of Materials

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 17.72%; height: 17pt;"> <p class="MsoNormal">Reference</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">Qty</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">Part Number</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 17pt;"> <p class="MsoNormal">Description</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 17pt;"> <p class="MsoNormal">Package</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 17pt;"> <p class="MsoNormal">Manufacturer</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 17pt;"> <p class="MsoNormal">U1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">RT4533AGJ6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 17pt;"> <p class="MsoNormal">DC-DC Converter</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 17pt;"> <p class="MsoNormal">TSOT-23-6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 17pt;"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 17pt;"> <p class="MsoNormal">L1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">NR4018T220M</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 17pt;"> <p class="MsoNormal">22µH</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 17pt;"> <p class="MsoNormal">L-SH4018</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 17pt;"> <p class="MsoNormal">TAIYO YUDEN</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 1cm;"> <p class="MsoNormal">C2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 1cm;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 1cm;"> <p class="MsoNormal">C0603X5R1E225DT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 1cm;"> <p class="MsoNormal">2.2µF/16V/X5R/0603</p> <p class="MsoNormal">Capacitor Ceramic</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 1cm;"> <p class="MsoNormal">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 1cm;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 1cm;"> <p class="MsoNormal">C5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 1cm;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 1cm;"> <p class="MsoNormal">GMK107BJ105KA</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 1cm;"> <p class="MsoNormal">1µF/50V/X5R/0805</p> <p class="MsoNormal">Capacitor Ceramic</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 1cm;"> <p class="MsoNormal">C-0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 1cm;"> <p class="MsoNormal">TAIYO YUDEN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 17pt;"> <p class="MsoNormal">D1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">SR26</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 17pt;"> <p class="MsoNormal">Schottky Diode</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 17pt;"> <p class="MsoNormal">D-1206</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 17pt;"> <p class="MsoNormal">PANJIT</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 17pt;"> <p class="MsoNormal">R3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 17pt;"> <p class="MsoNormal">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 17pt;"> <p class="MsoNormal">R6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">0603 10R0 1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 17pt;"> <p class="MsoNormal">Resistor, 1%, 10Ω</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 17pt;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 17pt;"> <p class="MsoNormal">R8</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 17pt;"> <p class="MsoNormal">Short</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 17pt;"> <p class="MsoNormal">D9, D13</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">0603 JUMP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 17pt;"> <p class="MsoNormal">Resistor, 1%, 0Ω</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 17pt;"> <p class="MsoNormal">D-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 17pt;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 39.7pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 17.72%; height: 39.7pt;"> <p class="MsoNormal">D2, D3, D4, D5, D6, D7, D8, D10, D11, D12</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 39.7pt;"> <p class="MsoNormal">10</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 39.7pt;"> <p class="MsoNormal">LNL-190UW-4H</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.24%; height: 39.7pt;"> <p class="MsoNormal">WLED</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.28%; height: 39.7pt;"> <p class="MsoNormal">D-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 16.98%; height: 39.7pt;"> <p class="MsoNormal">光楠</p> </td> </tr> </tbody> </table> </div>

11. EVB Layout

<p class="23CxSpFirst"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4533agj6/html-images/image003_en.jpg" class="fancybox"><img width="491" height="332" width="491" height="332" id="圖片 1" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4533agj6/html-images/image003_en.jpg" /></a></p> <p class="23CxSpLast">Top View</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4533agj6/html-images/image004_en.jpg" class="fancybox"><img width="491" height="332" width="491" height="332" id="圖片 7" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt4533agj6/html-images/image004_en.jpg" /></a></p> <p class="23">Bottom View</p>
