1. Purpose

<p class="MsoNormal">The RT5796A is a high efficiency synchronous step-down DC/DC converter. Its input voltage range is from 2.5V to 6V and provides an adjustable regulated output voltage from 0.6V to 3.4V while delivering up to 1.5A of output current.This document explains the function and use of the RT5796A evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.</p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT5796A is a high efficiency synchronous step-down DC/DC converter. Its input voltage range is from 2.5V to 6V and provides an adjustable regulated output voltage from 0.6V to 3.4V while delivering up to 1.5A of output current. The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. The Current Mode Constant-On-time (CMCOT) operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The RT5796A is available in the TSOT-23-6 package. </p>

3. Product Feature

<ul> <li> Efficiency Up to 95% </li> <li> R_DSON 160mΩ HS/110mΩ LS </li> <li> V_IN Range 2.5V to 6V </li> <li> V_REF 0.6V with ±2% Accuracy </li> <li> CMCOT™ Control Loop Design for Best Transient Response, Robust Loop Stability with Low-ESR (MLCC) C_OUT </li> <li> Fixed Soft-Start 1.2ms; PGOOD Function in TSOT-23-6 </li> <li> Cycle-by-Cycle Over Current Protection </li> <li> Input Under Voltage Lockout </li> <li> Output Under Voltage Protection (UVP Hiccup) </li> <li> Thermal Shutdown Protection </li> <li> Power Saving at Light Load </li> </ul>

4. Key Performance Summary Table

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation Board Number : PCB070_V1</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Input Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">3.3V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">1.5A</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">1.2V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">RT5796AHGJ6, TSOT-23-6</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Operation Frequency</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Steady 1MHz at all loads</p> </td> </tr> </tbody> </table> </div>

5. Bench Test Setup Conditions

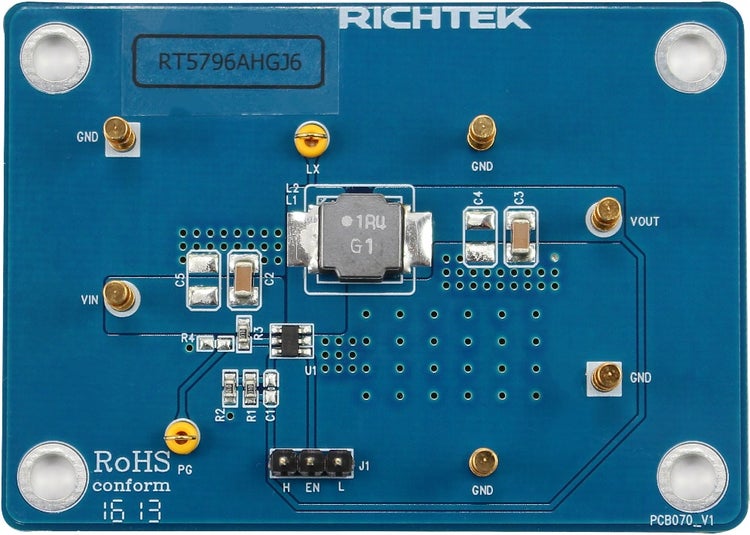

<h3>Headers Description and Placement</h3> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5796ahgj6/html-images/image001_en.jpg" class="fancybox"><img width="435" height="310" width="435" height="310" id="圖片 5" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5796ahgj6/html-images/image001_en.jpg" /></a></p> <p class="2">Please carefully inspect the EVB IC and external components, comparing them to the following Bill of Materials, to ensure that all components are installed and undamaged. If any components are missing or damaged during transportation, please contact the distributor or send e-mail to <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p>

6. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 1cm;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 13.9%; height: 1cm;"> <p class="23CxSpFirst">Test point/</p> <p class="23CxSpMiddle">Pin name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 1cm;"> <p class="23CxSpMiddle">Signal</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 1cm;"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">FB</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 1cm;"> <p class="ListParagraph1CxSpLast">Feedback Voltage Input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 1cm;"> <p class="Default">Feedback Voltage Input. An external resistor divider from the output to GND, tapped to the FB pin, sets the output voltage.</p> </td> </tr> <tr style="height: 51pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 51pt;"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 51pt;"> <p class="ListParagraph1CxSpLast">Input voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 51pt;"> <p class="Default">Supply Voltage Input. The RT5796A operates from a 2.5V to 6V unregulated input. C1 is needed to prevent large voltage spikes from appearing at the input.</p> <p class="MsoNormal">Quiet ground for controller circuits.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 17pt;"> <p class="Default">Power Ground and Quiet Ground for Controller Circuits. </p> </td> </tr> <tr style="height: 39.7pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 39.7pt;"> <p class="ListParagraph1CxSpFirst">PG</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 39.7pt;"> <p class="ListParagraph1CxSpLast">Power Good Indicator</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 39.7pt;"> <p class="Default">Power Good Indicator. The output of this pin is an open-drain with external pull-up resistor to IN. PG is pulled up to IN when the FB voltage is within 90%, otherwise it is LOW.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1">LX</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 17pt;"> <p class="MsoNormal">Switch node </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 17pt;"> <p class="MsoNormal">Switch node. </p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1">EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 23.7%; height: 17pt;"> <p class="MsoNormal">Enable Control Input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 62.4%; height: 17pt;"> <p class="Default">Enable Control Input. </p> </td> </tr> </tbody> </table> </div>

7. Power-up & Measurement Procedure

<p class="MsoListParagraph">1. Apply a 3.3V nominal input power supply (2.5V < V_IN < 6V) to the VIN and GND terminals.</p> <p class="MsoListParagraph">2. Set the jumper at JP1 to connect terminals 2 and 3, connecting EN to VIN.</p> <p class="MsoListParagraph">3. Verify the output voltage (approximately 1.2V) between VOUT and GND.</p> <p class="MsoListParagraph">4. Connect an external load up to 1.5A to the VOUT and GND terminals and verify the output voltage and current.</p>

8. Output Voltage Setting

<p class="MsoNormal">Set the output voltage with the resistive divider (R1, R2) between VOUT and GND with the midpoint connected to FB. The output is set by the following formula :</p> <p class="MsoNormal">V_OUT = V_REF x (1 + R1 / R2)</p>

9. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <p class="21"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5796ahgj6/html-images/image002_en.jpg" class="fancybox"><img width="680" height="318" width="680" height="318" id="圖片 1" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5796ahgj6/html-images/image002_en.jpg" /></a></p>

10. Bill of Materials

<table width="680" class="MsoTableLightListAccent2" style="border: currentColor; margin-left: 5.4pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 16.66%; height: 17pt;"> <p class="MsoNormal">Reference</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">Qty</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 26.48%; height: 17pt;"> <p class="MsoNormal">Part Number</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.2%; height: 17pt;"> <p class="MsoNormal">Description</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.26%; height: 17pt;"> <p class="MsoNormal">Package</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> <p class="MsoNormal">Manufacture</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 16.66%; height: 17pt;"> <p class="MsoNormal">U1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 26.48%; height: 17pt;"> <p class="MsoNormal">RT5796AHGJ6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.2%; height: 17pt;"> <p class="MsoNormal">DC/DC Converter</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.26%; height: 17pt;"> <p class="MsoNormal">TSOT-23-6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 16.66%; height: 17pt;"> <p class="MsoNormal">C1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 26.48%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.2%; height: 17pt;"> <p class="MsoNormal">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.26%; height: 17pt;"> <p class="MsoNormal">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 16.66%; height: 17pt;"> <p class="MsoNormal">C2, C3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 26.48%; height: 17pt;"> <p class="MsoNormal">C3216X5R1H106KT000N</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.2%; height: 17pt;"> <p class="MsoNormal">10µF/50V/X5R/1206</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.26%; height: 17pt;"> <p class="MsoNormal">C-1206</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 16.66%; height: 17pt;"> <p class="MsoNormal">C4, C5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 26.48%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.2%; height: 17pt;"> <p class="MsoNormal">NA</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.26%; height: 17pt;"> <p class="MsoNormal">C-1210</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 16.66%; height: 1cm;"> <p class="MsoNormal">L1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 1cm;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 26.48%; height: 1cm;"> <p class="MsoNormal">NR8040T1R4N</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.2%; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">1.4µH</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.26%; height: 1cm;"> <p class="Default">L-NR8040_2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 1cm;"> <p class="MsoNormal">TAIYO YUDEN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 16.66%; height: 17pt;"> <p class="MsoNormal">R1, R2, R3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 26.48%; height: 17pt;"> <p class="MsoNormal">0603 100K 1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.2%; height: 17pt;"> <p class="MsoNormal">100k</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.26%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 16.66%; height: 17pt;"> <p class="MsoNormal">R4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 5.56%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 26.48%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.2%; height: 17pt;"> <p class="MsoNormal">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 15.26%; height: 17pt;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 13.84%; height: 17pt;"> </td> </tr> </tbody> </table>

11. PCB Layout

<p class="23CxSpFirst"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5796ahgj6/html-images/image003_en.jpg" class="fancybox"><img width="492" height="352" width="492" height="352" id="圖片 4" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5796ahgj6/html-images/image003_en.jpg" /></a></p> <p class="23CxSpLast">Top View</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5796ahgj6/html-images/image004_en.jpg" class="fancybox"><img width="491" height="351" width="491" height="351" id="圖片 2" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt5796ahgj6/html-images/image004_en.jpg" /></a></p> <p class="23">Bottom View</p>
