overview

1. General Description

<p class="bady">The RT6190 is a bidirectal Buck-Boost controller designed for USB power delivery (USB-PD). It can deliver up to 140W power with maximum 5A current under V_OUT = 28V condition. This document explains the function and use of the RT6190 evaluation board (EVB) and provides information for the evaluation board schematic, layout, and bill of materials (BOM) to suit individual requirements.</p>

2. Performance Specification Summary

<p class="bady">The RT6190 is a bidirectal Buck-Boost controller designed for USB power delivery (USB-PD) with an input supply voltage range of 4.5V to 36V in a WQFN-40L 5x5 package. The device is mounted on a four-layer evaluation board (EVB) in size of 110mm x 60mm with 1oz copper thickness.</p> <p class="bady">Table 1. RT6190 Evaluation Board Performance Specification Summary</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td width="63%" style="width:63.42%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">EVB Parameter</p> </td> </tr> <tr style="height:17.0pt"> <td width="100%" colspan="2" style="width:100.0%;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">Input Range</p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Input Voltage</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">12V to 24V</p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Enable Input Voltage</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">2V to 24V</p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">ALERT Pin Pull-High Voltage</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">1.8V or 3.3V</p> </td> </tr> <tr style="height:17.0pt"> <td width="100%" colspan="2" style="width:100.0%;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">Output Range</p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Output Voltage</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">5V to 28V</p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Maximum Output Current</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">5A</p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Maximum Overcurrent Protection</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">6.5A </p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Maximum Output Power</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">140W</p> </td> </tr> <tr style="height:17.0pt"> <td width="100%" colspan="2" style="width:100.0%;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">Switching Frequency and Package</p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Operating Frequency</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">250kHz (typ.) in FCCM</p> </td> </tr> <tr style="height:17.0pt"> <td width="36%" style="width:36.58%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Package</p> </td> <td width="63%" style="width:63.42%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">WQFN-40L 5x5</p> </td> </tr> </table>

3. Detailed Description of Hardware

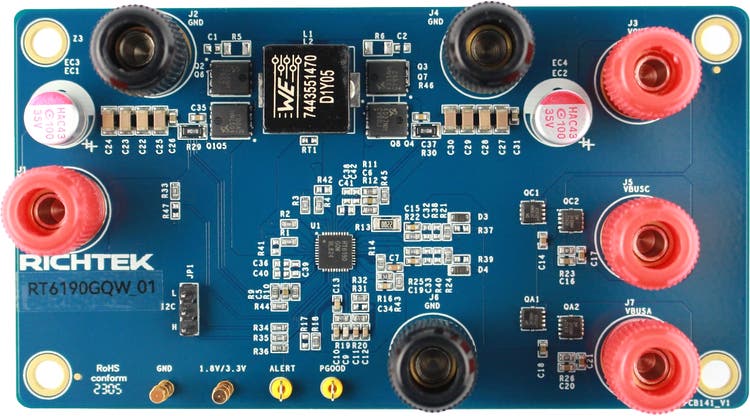

<h3>Headers Description and Placement</h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image001_en.png"><img width="605" height="336" id="圖片 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image001_en.png" alt="一張含有 文字, 電子產品 的圖片 自動產生的描述" /></a></p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image002_en.png"><img width="605" height="331" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image002_en.png" alt="一張含有 藍色, 硬碟, 控制台 的圖片 自動產生的描述" /></a></p> <p class="MsoNormal">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p>

4. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Test Point</p> </td> <td width="15%" style="width:15.08%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Pin Name</p> </td> <td width="71%" style="width:71.3%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast"> Expected Waveforms or Voltage Levels on Test Points</p> </td> </tr> <tr style="height:25.3pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:25.3pt"> <p class="MsoNormal">J1</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:25.3pt"> <p class="MsoNormal">VIN</p> </td> <td width="71%" rowspan="2" style="width:71.3%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:25.3pt"> <p class="Default">(1) Positive/Negative terminals for input voltage from power supply to EVB in Forward operation.</p> <p class="Default">(2) Positive/Negative terminals for output voltage from EVB to e-load in Reverse operation.</p> </td> </tr> <tr style="height:25.3pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:25.3pt"> <p class="MsoNormal">J2</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:25.3pt"> <p class="MsoNormal">GND</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">J3</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">VOUT</p> </td> <td width="71%" style="width:71.3%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="Default">Positive terminal for output voltage from EVB to e-load.</p> </td> </tr> <tr style="height:51.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">J4</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">GND</p> </td> <td width="71%" style="width:71.3%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="Default">(1) Negative terminal of output voltage and Power Path C from EVB to e-load in Forward operation.</p> <p class="Default">(2) Negative terminal of input voltage from power supply to EVB in Reverse operation.</p> </td> </tr> <tr style="height:51.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">J5</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">VBUSC</p> </td> <td width="71%" style="width:71.3%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoListParagraph">(1) Positive terminal for Power Path C from EVB to e-load in Forward operation.</p> <p class="MsoListParagraph">(2) Positive terminal for input voltage from power supply to EVB in Reverse operation.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">J6</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">GND</p> </td> <td width="71%" rowspan="2" style="width:71.3%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Positive/Negative terminals for Power Path A from EVB to e-load.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">J7</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">VBUSA</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">JP1</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">I2C</p> </td> <td width="71%" style="width:71.3%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Connection for I²C interface.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">GP1</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1.8V/3.3V</p> </td> <td width="71%" style="width:71.3%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">External power supply for pull-high voltage of ALERT pin.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">GP2</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">GND</p> </td> <td width="71%" style="width:71.3%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Reference voltage for test points.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">TP1</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">PGOOD</p> </td> <td width="71%" style="width:71.3%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Test point for PGOOD measurement.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.62%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">TP2</p> </td> <td width="15%" style="width:15.08%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">ALERT</p> </td> <td width="71%" style="width:71.3%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Test point for ALERT measurement.</p> </td> </tr> </table>

5. Power-up & Measurement Procedure

<p class="MsoListParagraph">(1) Forward Operation</p> <ul> <li>Connect input power supply with wire as wide and short as possible to J1/J2 terminals.</li> <li>Connect EN to input voltage though R33, but R47 is NC.</li> <li>Connect an external load up to 5A to J4/J5 terminals.</li> <li>Set input voltage = 12V and 10A input current limit of input power supply.</li> <li>Connect I2C to JP1 pin header, and set register by I²C interface:</li> <li>Set 0x0E = 90h to enable RT6190.</li> <li>Set 0x29 = 02h to turn on power path C for VBUSC enabled.</li> <li>Status check when power on sequence finished:</li> <li>VOUT = 5V at J3/J4 terminals.</li> <li>VBUSC = 5V at J5/J4 terminals.</li> <li>0x1E = 00h and 0x1F = 40h.</li> </ul> <p class="MsoListParagraph">(2) Reverse Operation</p> <ul> <li>Connect input power supply with wire as wide and short as possible to J5/J4 terminals.</li> <li>Connect EN to input voltage though R47, but R33 is NC.</li> <li>Connect an external load up to 5A to J1/J2 terminals.</li> <li>Set input voltage = 12V and 10A input current limit of input power supply.</li> <li>Connect I²C to JP2 pin header, and set register by I²C interface:</li> <li>Set 0x0C = 52h for power role swap.</li> <li>Set 0x29 = 02h to turn on power path C.</li> <li>Set 0x0E = 90h to enable RT6190.</li> <li>Status check when power on sequence finished:</li> <li>VOUT = 5V at J1/J2 terminals.</li> <li>0x1E = 00h and 0x1F = 40h.</li> </ul>

6. Noticifacation

<p class="MsoListParagraph">(1) For other functions, please refer to RT6190 datasheet for detailed description.</p> <p class="MsoListParagraph">(2) The input and output current should not be higher than 9A due to power dissipation of the input and output current sense resistors are all 1W in 1206 size.</p>

7. Bill of Materials

<table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <thead> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Reference</p> </td> <td width="5%" style="width:5.54%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Qty</p> </td> <td width="24%" style="width:24.82%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Part Number</p> </td> <td width="22%" style="width:22.52%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Description</p> </td> <td width="20%" style="width:20.32%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Package</p> </td> <td width="14%" style="width:14.58%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Manufacturer</p> </td> </tr> </thead> <tr style="height:1.0cm"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">U1</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">RT6190GQW</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Buck-Boost PWM Controller</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">WQFN-40L 5x5</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Richtek</p> </td> </tr> <tr style="height:1.0cm"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">L1</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">7443551470</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">4.7µH/7mΩ/15A</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">12.8x12.8x6.2mm</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">WÜRTH</p> <p class="MsoNormal">ELEKTRONIK</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">L2</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">NC</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> </tr> <tr style="height:1.0cm"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Q1, Q4</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">SM4037NHKP</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">N-MOSFET for</p> <p class="MsoNormal">High-Side (40V/80A)</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">DFN5x6A-8_EP</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Sinopower</p> </td> </tr> <tr style="height:1.0cm"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Q2, Q3</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">SM4035NHKP</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">N-MOSFET for</p> <p class="MsoNormal">Low-Side (40V/100A)</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">DFN5x6A-8_EP</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Sinopower</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Q5, Q8</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">NC</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Q6, Q7</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">NC</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> </tr> <tr style="height:39.7pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">QC1, QC2, QA1, QA2</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">4</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">SM3430NHQA</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">N-MOSFET for USBC/A Power Path (40V/36A)</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">DFN3.3x3.3A-8_EP</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">Sinopower</p> </td> </tr> <tr style="height:75.5pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:75.5pt"> <p class="MsoNormal">D1, D2, D3, D4</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:75.5pt"> <p class="MsoNormal">4</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:75.5pt"> <p class="MsoNormal">1N4148WT-7</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:75.5pt"> <p class="MsoNormal">Diode (100V/0.25W)</p> <p class="MsoListParagraph">(1) External BOOT Voltage for SW1 and SW2</p> <p class="MsoListParagraph">(2) Discharge QC1, QC2, QA1, QA2</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:75.5pt"> <p class="MsoNormal">SOD-523</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:75.5pt"> <p class="MsoNormal">Diodes</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">EC1, EC2</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">NC</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">EC3, EC4</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">350ARHA101M08X8</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">100µF/35V</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">8x3.5mm</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">APAQ</p> </td> </tr> <tr style="height:63.85pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:63.85pt"> <p class="MsoNormal">C1, C2, C32, C33, C36, C38, C39, C40, C41, C42</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:63.85pt"> <p class="MsoNormal">10</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:63.85pt"> <p class="MsoNormal">--</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:63.85pt"> <p class="MsoNormal">NC</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:63.85pt"> <p class="MsoNormal">--</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:63.85pt"> <p class="MsoNormal">--</p> </td> </tr> <tr style="height:39.7pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">C3, C4, C34, C35, C37</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">5</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">0603B104K500CT</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">0.1µF/50V/X7R/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:62.45pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:62.45pt"> <p class="MsoNormal">C5, C6, C14, C16, C17, C18, C20, C21, C26, C31</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:62.45pt"> <p class="MsoNormal">10</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:62.45pt"> <p class="MsoNormal">GRM188R61H105KAALD</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:62.45pt"> <p class="MsoNormal">1µF/50V/X5R/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:62.45pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:62.45pt"> <p class="MsoNormal">MURATA</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C7, C8</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">GRM188R61E475KE11D</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">4.7µF/25V/X5R/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">MURATA</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C9</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0603N1R0C500CT</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1pF/50V/NPO/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C10</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0603B332K500CT</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">3.3nF/50V/X7R/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C11</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0603N221J500CT</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">220pF/50V/NPO/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C12</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0603B103K500CT</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">10nF/50V/X7R/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C13</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0603B333K500CT</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">33nF/50V/X7R/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C15, C19</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0603B152K500CT</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1.5nF/50V/X7R/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:51.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">C22, C23, C24, C25, C27, C28, C29, C30</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">8</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">1206X106K500CT</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">10µF/50V/X5R/1206</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">C-1206</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:74.1pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:74.1pt"> <p class="MsoNormal">R1, R2, R3, R4, R7, R8, R33, R34, R35, R43, R44, R45</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:74.1pt"> <p class="MsoNormal">12</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:74.1pt"> <p class="MsoNormal">WR06X000PTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:74.1pt"> <p class="MsoNormal">0/0603</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:74.1pt"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:74.1pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:1.0cm"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">R9, R10, R11, R12</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">4</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">WR06X10R0FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">10/0603/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R13</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR12X2200FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">220/1206/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:1.0cm"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">R14, R18, R32</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">3</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">WR06X1003FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">100k/0603/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R15</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06W1R00FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1/0603/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R16, R36</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1002FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">10k/0603/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:51.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">R17, R31, R37, R38, R39, R40, R41, R42</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">6</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">--</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">NC</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">--</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:51.0pt"> <p class="MsoNormal">--</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R19</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X4702FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">47k/0603/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R20</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X5101FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">5.1k/0603/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:1.0cm"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">R21, R22, R24, R25</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">4</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">WR06X1001FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">1k/0603/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R23, R26</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06W2R00FTL</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2/0603/1%</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:39.7pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">R29, R30</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">RLM-1632-6F-R010-FNH</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">10mΩ/1%/1206 for input/output current sense</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">R-1206</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">Cyntec</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R46</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">NC</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.22%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RT1</p> </td> <td width="5%" style="width:5.54%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.82%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="22%" style="width:22.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">NC</p> </td> <td width="20%" style="width:20.32%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> <td width="14%" style="width:14.58%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">--</p> </td> </tr> </table>

8. Quick Start with RTMCU WRENBOARD

<p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image003_en.jpg"><img border="0" width="506" height="142" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image003_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="bady">The following summarizes the contents of the Richtek MCU bridge board. In addition to hardware kits, one software utilities is needed to be installed for <a href="https://www-preprod.richtek.com/zh-tw/design-support/evaluation-boards/rd0001-01" class="link">RTMCU_WRENBOARD bridgeboard</a>.</p> <ul> <li>Richtek MCU bridge board (RTMCU_WRENBOARD).</li> <li>USB B type to micro 5 Pins cable to connect PC and the MCU bridge board. (optional)</li> <li><a href="/content/dam/richtek/data/zh_tw/resources/evaluation-boards/rd0001-01/documents/RTBridgeboardUtilitiesV153.exe" class="link">RTBridgeboardUtilities.exe</a>.</li> </ul>

9. RTMCU_WRENBOARD Hardware Description

<p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image004_en.png"><img border="0" width="529" height="302" id="圖片 13" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image004_en.png" alt="Technical Document Image Preview" /></a></p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image005_en.png"><img border="0" width="530" height="126" id="圖片 16" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image005_en.png" alt="Technical Document Image Preview" /></a></p> <h3>Function Description</h3> <p class="bady">A. Standard USB A plug. It connects to PC directly.</p> <p class="bady">B. Micro 5 pin USB port. It connects to PC by USB cable.</p> <ul> <li>It is an alternative to connect RTMCU_WRENBOARD to PC when long distance between PC and Device is needed.</li> </ul> <p class="bady">C. White LED Indicator</p> <ul> <li>The white LED indicates RTMCU_WRENBOARD command execution.</li> </ul> <p class="bady">D. Blue LED Indicator</p> <ul> <li>The blue LED indicates I²C (SCL and SDA) are operated in 1.8V.</li> </ul> <p class="bady">E. Red LED Indicator</p> <ul> <li>The red LED indicates I²C (SCL and SDA) are operated in 3.3V.</li> </ul> <p class="bady">F. Red LED Indicator. This button has two functions:</p> <ul> <li>To exchange I²C signals between 3.3V and 1.8V.</li> <li>To enable firmware download function.</li> </ul> <p class="bady">G. I2C and GND pins</p> <ul> <li>I²C pins (SDA, GND and SCL) in 3.3V or 1.8V level depend on user setting.</li> </ul> <p class="bady">H. Power pins</p> <ul> <li>Power pins with 3.3V and 1.8V. It is suggested to limit the output current within 100mA for each power pins.</li> </ul> <p class="bady">I. GPIO</p> <ul> <li>User can connect this pin to control device in either function.</li> </ul> <p class="bady">The item A/B/C/D/E/G are used for RT6190 EVB.</p>

10. I2C Control Panel Interface

<p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image006_en.png"><img border="0" width="529" height="427" id="圖片 7" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image006_en.png" alt="Technical Document Image Preview" /></a></p> <p class="bady">After VIN and EN are ready, and press “Scan Device” button, then “Slave Address” will show 0x2C or 0x2D to indicate RT6190 that can receive I²C command.</p>

11. Typical Applications

<h3>EVB Schematic Diagram</h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image007_en.png"><img border="0" width="681" height="426" id="Picture 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image007_en.png" alt="Technical Document Image Preview" /></a></p> <p class="bady">Note:</p> <p class="bady">(1) I²C slave address is 0x2C when R17 = NC, R18 = 100kΩ.</p> <p class="bady">(2) I²C slave address is 0x2D when R17 = 100kΩ, R18 = NC.</p>

12. Measure Result

<table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Efficiency @ V_OUT = 5V</p> </td> <td width="49%" colspan="2" style="width:49.98%;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Efficiency @ V_OUT = 9V</p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image008_en.png"><img border="0" width="314" height="246" id="圖片 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image008_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image009_en.png"><img border="0" width="314" height="246" id="圖片 14" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image009_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Efficiency @ V_OUT = 12V</p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Efficiency @ V_OUT = 15V</p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image010_en.png"><img border="0" width="314" height="246" id="圖片 17" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image010_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image011_en.png"><img border="0" width="314" height="246" id="圖片 18" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image011_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Efficiency @ V_OUT = 20V</p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Efficiency @ V_OUT = 28V</p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image012_en.png"><img border="0" width="314" height="246" id="圖片 19" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image012_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image013_en.png"><img border="0" width="314" height="246" id="圖片 6" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image013_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Forward Buck Mode Output Ripple Voltage</p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Reverse Buck Mode Output Ripple Voltage</p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image014_en.png"><img border="0" width="314" height="227" id="圖片 128" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image014_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="Default"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image015_en.png"><img border="0" width="314" height="227" id="圖片 129" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image015_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Forward Boost Mode Output Ripple Voltage</p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Reverse Boost Mode Output Ripple Voltage</p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image016_en.png"><img border="0" width="324" height="225" id="圖片 133" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image016_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="Default"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image017_en.png"><img border="0" width="323" height="225" id="圖片 134" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image017_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Forward Buck Mode Load Transient Response</p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Reverse Buck Mode Load Transient Response</p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image018_en.png"><img border="0" width="324" height="227" id="圖片 135" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image018_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" colspan="2" style="width:49.98%;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="Default"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image019_en.png"><img border="0" width="321" height="227" id="圖片 136" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image019_en.png" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Forward Boost Mode Load Transient Response</p> </td> <td width="49%" style="width:49.92%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Reverse Boost Mode Load Transient Response</p> </td> <td style="border:none;padding:0cm 0cm 0cm 0cm" width="0%"><p class="MsoNormal"> </p></td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image020_en.png"><img border="0" width="312" height="225" id="圖片 120" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image020_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" style="width:49.92%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="Default"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image021_en.png"><img border="0" width="312" height="225" id="圖片 121" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image021_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td style="border:none;padding:0cm 0cm 0cm 0cm" width="0%"><p class="MsoNormal"> </p></td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Forward Power-On from I²C</p> </td> <td width="49%" style="width:49.92%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Reverse Power-On from I²C</p> </td> <td style="border:none;padding:0cm 0cm 0cm 0cm" width="0%"><p class="MsoNormal"> </p></td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image022_en.png"><img border="0" width="305" height="225" id="圖片 122" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image022_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" style="width:49.92%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="Default"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image023_en.png"><img border="0" width="303" height="225" id="圖片 123" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image023_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td style="border:none;padding:0cm 0cm 0cm 0cm" width="0%"><p class="MsoNormal"> </p></td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Forward Power-Off from I²C</p> </td> <td width="49%" style="width:49.92%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Reverse Power-Off from I²C</p> </td> <td style="border:none;padding:0cm 0cm 0cm 0cm" width="0%"><p class="MsoNormal"> </p></td> </tr> <tr style="height:17.0pt"> <td width="50%" style="width:50.02%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image024_en.png"><img border="0" width="310" height="227" id="圖片 124" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image024_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="49%" style="width:49.92%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="Default"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image025_en.png"><img border="0" width="306" height="227" id="圖片 125" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image025_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td style="border:none;padding:0cm 0cm 0cm 0cm" width="0%"><p class="MsoNormal"> </p></td> </tr> </table>

13. Evaluation Board Layout

<p class="bady">Figure 1 to Figure 4 are RT6190GQW Evaluation Board layout. </p> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image026_en.jpg"><img border="0" width="604" height="331" id="圖片 10" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image026_en.jpg" alt="一張含有 圖表 的圖片 自動產生的描述" /></a></p> <p class="23CxSpLast">Figure 1. Top View (1^st layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image027_en.jpg"><img border="0" width="604" height="331" id="圖片 11" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image027_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="10">Figure 2. PCB Layout—Inner Side (2^nd Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image028_en.jpg"><img border="0" width="604" height="331" id="圖片 12" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image028_en.jpg" alt="一張含有 文字, 電子產品 的圖片 自動產生的描述" /></a></p> <p class="10">Figure 3. PCB Layout—Inner Side (3^rd Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image029_en.jpg"><img border="0" width="605" height="331" id="圖片 15" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6190gqw_01/html-images/image029_en.jpg" alt="一張含有 電子產品 的圖片 自動產生的描述" /></a></p> <p class="23">Figure 4. Bottom View (4^th Layer)</p>
