overview

1. General Description

<p class="bady">The RT8577A is an 4-CH LED driver capable of delivering 200mA for each channel. The RT8577A is a current mode boost converter with an adjustable switching frequency via the RT pin from 200kHz to 2.1MHz and a wide VIN range from 5V to 40V.</p>

2. Performance Specification Summary

<p class="bady">Summary of the RT8577A Evaluation Board performance specification is provided in Table 1. The ambient temperature is <span lang="EN-US" style="font-family:Symbol">-</span>40°C to 85°C.</p> <p class="MsoNormal">Table 1. RT8577AGQW Evaluation Board Performance Specification Summary</p> <div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Specification</p> </td> <td width="278" style="width:208.6pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Test Conditions</p> </td> <td width="50" style="width:37.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Min</p> </td> <td width="50" style="width:37.4pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Typ</p> </td> <td width="50" style="width:37.4pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Max</p> </td> <td width="49" style="width:36.6pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Unit</p> </td> </tr> <tr style="height:17.0pt"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Input Voltage Range</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">5.5</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">40</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:1.0cm"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpFirst">LED1 to LED4 Regulation Voltage</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpMiddle">I_LED = 80mA</p> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpMiddle">0.75</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> <p class="ListParagraph1CxSpMiddle">0.86</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> <p class="ListParagraph1CxSpMiddle">1</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:17.0pt"> <td width="204" rowspan="2" style="width:152.85pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Switching Frequency</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">RRT = 20kΩ</p> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">1.8</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">2.1</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">2.4</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">MHz</p> </td> </tr> <tr style="height:17.0pt"> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">RRT = Open</p> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">50</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">200</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">250</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">kHz</p> </td> </tr> <tr style="height:17.0pt"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">LED Current Accuracy</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">R_ISET = 15kΩ, V_PWM > 1.2V</p> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">76</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">80</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">84</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">mA</p> </td> </tr> <tr style="height:17.0pt"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">LED Current Matching</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">I_LED = 80mA</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image001_en.png"><img width="121" height="48" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image001_en.png" alt="Technical Document Image Preview" /></a></p> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">--</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle"><span lang="EN-US" style="font-size:10.0pt;font-family:Symbol">±</span>1.5</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle"><span lang="EN-US" style="font-size:10.0pt;font-family:Symbol">±</span>3</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">%</p> </td> </tr> <tr style="height:17.0pt"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Maximum Duty Cycle</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">80</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">100</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">%</p> </td> </tr> <tr style="height:17.0pt"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">SEN Current Sense Limit</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">0.1</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">0.5</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">0.6</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:17.0pt"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">OVP Threshold</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">1.9</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">2</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">2.1</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:17.0pt"> <td width="204" style="width:152.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">SCP Threshold</p> </td> <td width="278" style="width:208.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">PWM freq = 2 kHz to 4kHz</p> </td> <td width="50" style="width:37.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">6</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">7</p> </td> <td width="50" style="width:37.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">8</p> </td> <td width="49" style="width:36.6pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> </table> </div>

3. Power-up Procedure

<h3>Suggestion Required Equipments</h3> <ul> <li>RT8577A Evaluation Board </li> <li>DC power supply capable of at least 12V and 10A</li> <li>LED Load Board</li> <li>Function Generator</li> <li>Oscilloscope</li> </ul>

4. Quick Start Procedures

<p class="bady">The Evaluation Board is fully assembled and tested. Follow the steps below to verify board operation. Do not turn on supplies until all connections are made. When measuring the output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip and ground ring directly across the last output capacitor. </p>

5. Proper measurement equipment setup and follow the procedure below.

<p class="MsoListParagraph">1) With power off, connect the power supply for VIN and GND pins.</p> <p class="MsoListParagraph">2) With power off, use jumper to pull high for EN pin.</p> <p class="MsoListParagraph">3) With power off, connect the Function Generator to PWM pin.</p> <p class="MsoListParagraph">4) With power off, connect the LED Load Board to VOUT and LEDx pins. </p> <p class="MsoListParagraph">5) Turn on the power supply at the input. Make sure that the input voltage does not exceeds 24V on the Evaluation Board.</p> <p class="MsoListParagraph">6) Turn on the Function Generator at the PWM pin.</p> <p class="MsoListParagraph">7) Check LED Load Board brightness.</p> <p class="MsoListParagraph">8) Once the proper output voltage is established, adjust the PWM duty within the operating ranges and observe the output LED brightness , I_LEDx , efficiency and other performance.</p>

6. Detailed Description of Hardware

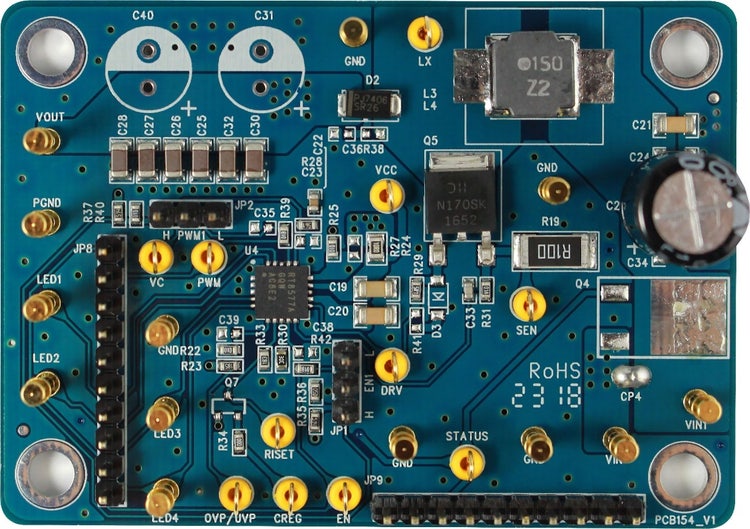

<h3>Headers Description and Placement</h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image002_en.jpg"><img width="529" height="373" id="圖片 18" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image002_en.jpg" alt="一張含有 電路, 電子工程, 電子產品, 電子元件 的圖片 自動產生的描述" /></a></p> <p class="MsoNormal">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p>

7. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;margin-left:5.4pt;border-collapse:collapse; border:none"> <thead> <tr style="height:17.0pt"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpFirst">Test Point/</p> <p class="23CxSpMiddle">Pin Name</p> </td> <td width="85%" style="width:85.2%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> </thead> <tr style="height:1.0cm"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1">VIN</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Power input. Support 5.5V to 40V Input Voltage. Must bypass with a suitable large ceramic capacitor at this pin.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">EN</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">High = Enable. Apply an external clock to adjust the switching frequency.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Ground.</p> </td> </tr> <tr style="height:1.0cm"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1">Vout</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Bootstrap supply for high-side gate driver. Connect a 0.1µF ceramic capacitor between the Vout and LX pins.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">LX</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Connect this pin to an external L-C filter.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">LED4</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Current sink for LED4.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">LED3</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Current sink for LED3.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">LED2</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Current sink for LED2.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.8%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">LED1</p> </td> <td width="85%" style="width:85.2%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Current sink for LED1.</p> </td> </tr> </table>

8. Bill of Materials

<table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" width="683" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="683" colspan="7" style="width:512.55pt;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="TableParagraph">V_IN = 12V, V_OUT = LED Load Board , I_OUT= 80mA</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="TableParagraph">Reference</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="TableParagraph">Count</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="TableParagraph">Part Number</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;background:#009EB8; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="TableParagraph">Value</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="TableParagraph">Description</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="TableParagraph">Package</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="TableParagraph">Manufacturer</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">U4</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">RT8577AGQW</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">RT8577A</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">LED Driver</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WQFN-20L 5x5</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height:1.0cm"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">C19, C20, C21</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">3</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">1206B105K500CT</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:1.0cm"> <p class="MsoNormal">1µF</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">Capacitor, Ceramic</p> <p class="MsoNormal">50V/X7R</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">1206</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">C22</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603B224K250CT</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">0.22μF</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Capacitor, Ceramic</p> <p class="MsoNormal">50V/X7R</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:1.0cm"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">C24, C34</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">2</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">GRM32ER71H106KA12L</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:1.0cm"> <p class="MsoNormal">10µF</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">Capacitor, Ceramic</p> <p class="MsoNormal">50V/X7R</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">1210</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">muRata</p> </td> </tr> <tr style="height:39.7pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:39.7pt"> <p class="MsoNormal">C25, C26, C27, C28, C30, C32</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:39.7pt"> <p class="MsoNormal">6</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:39.7pt"> <p class="MsoNormal">UMK316AB7475KL-T</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:39.7pt"> <p class="MsoNormal">4.7µF</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:39.7pt"> <p class="MsoNormal">Capacitor, Ceramic</p> <p class="MsoNormal">50V/X7R</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:39.7pt"> <p class="MsoNormal">1206</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:39.7pt"> <p class="MsoNormal">TAIYO YUDEN</p> </td> </tr> <tr style="height:1.0cm"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">C29</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">LHK221M50V1015</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:1.0cm"> <p class="MsoNormal">220µF</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">Capacitor, Ceramic</p> <p class="MsoNormal">50V</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">EC-2P/10</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">JACKCON</p> </td> </tr> <tr style="height:1.0cm"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">C33</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">0603B121K500CT</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:1.0cm"> <p class="MsoNormal">120pF</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">Capacitor, Ceramic</p> <p class="MsoNormal">50V/X7R</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">D2</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">SR26</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">2A/60V</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Schottky Diode</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">SMA</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">PANJIT</p> </td> </tr> <tr style="height:1.0cm"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">L4</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">NR8040T150M</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:1.0cm"> <p class="MsoNormal">15µH</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">Power Inductor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">L-D12_5</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:1.0cm"> <p class="MsoNormal">TAIYO YUDEN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Q5</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">DMN10H170SK3-13</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">59A/60V</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">MOSFET</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">TO-252</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">DIODES</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R19</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">CR2512FR100E04Z</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">150mR</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2512</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">EVER OHMS</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R22, R25, R40</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">3</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1003FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">100k</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R23</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06W1804FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">1.8M</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R24</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR08X10R0FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">10R</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">CP-0805C</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R28</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06X5600FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">560R</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R29</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06W5R10FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">5.1R</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R30</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">RTT032002FTP</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">20k</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R31</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1000FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">100R</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R33</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1802FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">18k</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R34</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06X000 PTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">0R</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R35, R37</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06X5103FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">510k</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R36</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1103FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">110k</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="94" nowrap style="width:70.45pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">R39, R42</p> </td> <td width="40" nowrap style="width:30.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="155" style="width:116.2pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1001FTL</p> </td> <td width="77" style="width:57.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 1.4pt 0cm 1.4pt; height:17.0pt"> <p class="MsoNormal">1k</p> </td> <td width="126" nowrap style="width:94.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">Resistor</p> </td> <td width="102" nowrap style="width:76.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">0603</p> </td> <td width="90" style="width:67.65pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> </table>

9. Typical Applications

<h3>EVB Schematic Diagram</h3> <p class="21"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image003_en.png"><img border="0" width="595" height="629" id="Picture 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image003_en.png" alt="Technical Document Image Preview" /></a></p> <p class="MsoNormal">1. The capacitance values of the input and output capacitors will influence the input and output voltage ripple. </p> <p class="MsoNormal">2. MLCC capacitors have degrading capacitance at DC bias voltage, and especially smaller size MLCC capacitors will have much lower capacitance. </p>

10. Measure Result

<table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">LED Current vs. Input Voltage</p> </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">LED Current vs. PWM Duty Cycle</p> </td> </tr> <tr style="height:168.2pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image004_en.jpg"><img border="0" width="292" height="223" id="圖片 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image004_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image005_en.jpg"><img border="0" width="293" height="227" id="圖片 12" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image005_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Efficiency vs. Input Voltage</p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Start up with Minimum PWM Duty</p> </td> </tr> <tr style="height:172.95pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image006_en.jpg"><img border="0" width="292" height="229" id="圖片 13" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image006_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image007_en.jpg"><img border="0" width="293" height="203" id="圖片 15" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image007_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Power On from EN</p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">Power Off from EN</p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image008_en.jpg"><img border="0" width="303" height="220" id="圖片 16" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image008_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image009_en.jpg"><img border="0" width="303" height="220" id="圖片 17" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image009_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> </tr> </table>

11. Evaluation Board Layout

<p class="bady">Figure 1 to Figure 4 are RT8577A Evaluation Board layout. This board size is 70mm x 50mm and is constructed on four-layer PCB, outer layers with 2 oz. Cu and inner layers with 1 oz. Cu.</p> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image010_en.jpg"><img border="0" width="492" height="352" id="圖片 19" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image010_en.jpg" alt="一張含有 電子產品, 電路, 電子工程, 螢幕擷取畫面 的圖片 自動產生的描述" /></a></p> <p class="23CxSpMiddle">Figure 1. Top View (1^st layer)</p> <p class="23CxSpMiddle"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image011_en.jpg"><img border="0" width="491" height="352" id="圖片 20" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image011_en.jpg" alt="一張含有 螢幕擷取畫面, 圓形, Rectangle, 樣式 的圖片 自動產生的描述" /></a></p> <p class="23CxSpMiddle">Figure 2. PCB Layout—Inner Side (2^nd Layer)</p> <p class="23CxSpLast"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image012_en.jpg"><img border="0" width="492" height="353" id="圖片 21" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image012_en.jpg" alt="一張含有 螢幕擷取畫面, 圓形, 文字 的圖片 自動產生的描述" /></a></p> <p class="10">Figure 3. PCB Layout—Inner Side (3^rd Layer)</p> <p class="23CxSpLast"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image013_en.jpg"><img border="0" width="491" height="353" id="圖片 22" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8577agqw/html-images/image013_en.jpg" alt="一張含有 螢幕擷取畫面, 文字, 圓形 的圖片 自動產生的描述" /></a></p> <p class="MsoNormal">Figure 4. Bottom View (4^th Layer)</p>
